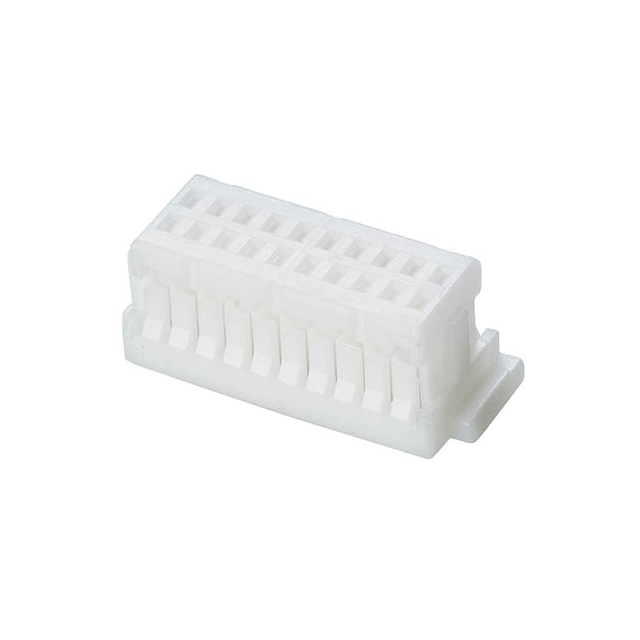

M40-1200500
- Mfr.Part #
- M40-1200500
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 10POS 1.00MM
- Stock
- 4,302
- In Stock :
- 4,302
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Rectangular Connector Housings
- Pitch :
- 0.039 1.00mm
- Body Length or Diameter :
- 0.315 inch
- Contact Type :
- Female Socket
- Series :
- M40
- Contact Finish - Mating :
- NOT SPECIFIED
- Mounting Type :
- Free Hanging (In-Line)
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Material :
- POLYBUTYLENE TEREPHTHALATE
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Receptacle
- Contact Termination :
- Crimp
- Pbfree Code :
- yes
- Operating Temperature (Max) :
- 85°C
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body/Shell Style :
- PLUG
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Rated Current (Signal) :
- 1A
- ECCN Code :
- EAR99
- Mounting Option 1 :
- LOCKING
- DIN Conformance :
- No
- MIL Conformance :
- No
- IEC Conformance :
- No
- Packaging :
- Bulk
- Note :
- Contacts Not Included
- Number of Positions :
- 10
- Body Breadth :
- 0.193 inch
- Color :
- White
- Contact Material :
- NOT SPECIFIED
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 10
- Polarization Key :
- POLARIZED HOUSING
- Contact Design :
- PREASSEM CONN
- HTS Code :
- 8536.69.40.40
- Body Depth :
- 0.197 inch
- Number of Rows :
- 2
- Reference Standard :
- UL
- Fastening Type :
- Push-Pull
- Mixed Contacts :
- No
- Datasheets
- M40-1200500

2 Rows Receptacle Bulk White 10 Positions Free Hanging (In-Line) Female Socket Crimp M40
M40-1200500 Overview
It comes in a Receptacle package.Free Hanging (In-Line) is the mounting type of the device.We pack the product in a Bulk case.This is from the M40 Series.
M40-1200500 Features
M40 series
M40-1200500 Applications
There are a lot of Harwin Inc.
M40-1200500 Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
