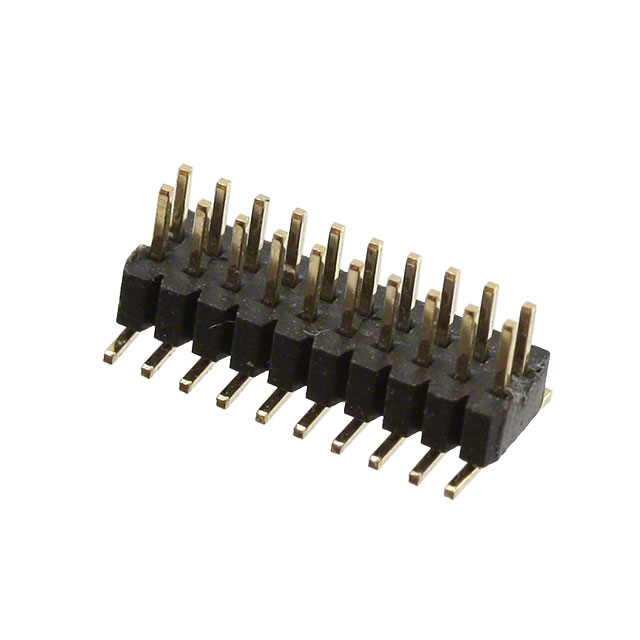

M40-3201045R
- Mfr.Part #
- M40-3201045R
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1MM
- Stock
- 611
- In Stock :
- 611
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Mating Contact Pitch :
- 0.039 inch
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Body Length or Diameter :
- 0.394 inch
- Contact Gender :
- Male
- HTS Code :
- 8536.69.40.40
- Style :
- Board to Board
- Contact Finish Thickness - Mating :
- Flash
- Series :
- M40
- Reference Standard :
- UL
- REACH SVHC :
- No SVHC
- Dielectric Withstanding Voltage :
- 500VAC V
- PCB Contact Pattern :
- RECTANGULAR
- IEC Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- MIL Conformance :
- No
- Shrouding :
- Unshrouded
- Contact Finish - Mating :
- Gold
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -40°C~105°C
- Fastening Type :
- Push-Pull
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Contact Length - Mating :
- 0.071 1.80mm
- Total Number of Contacts :
- 20
- Insulation Height :
- 0.059 1.50mm
- Mounting Type :
- Surface Mount
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide, Pick and Place
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Material :
- Brass
- Number of Conductors :
- ONE
- Published :
- 2007
- UL Flammability Code :
- 94V-0
- Mount :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1000000000Ohm
- Contact Resistance :
- 30mOhm
- Current Rating (Amps) :
- 1A
- Contact Type :
- Male Pin
- Factory Lead Time :
- 12 Weeks
- Terminal Pitch :
- 1mm
- Number of Positions :
- 20
- Pitch - Mating :
- 0.039 1.00mm
- Insulation Color :
- Black
- Connector Type :
- Header
- Termination :
- Solder
- PCB Contact Row Spacing :
- 3.6068 mm
- Mixed Contacts :
- No
- JESD-609 Code :
- e4
- Row Spacing - Mating :
- 0.039 (1.00mm)
- Number of Rows :
- 2
- Additional Feature :
- RoHS Compliant
- Number Of PCB Rows :
- 2
- Durability :
- 300 Cycles
- Datasheets
- M40-3201045R
M40-3201045R Documents

M40 Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA6T), Nylon 6T, Glass Filled 20-Position Board to Board 0.059 1.50mm Height
M40-3201045R Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the M40 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.Its Board Guide, Pick and Place feature renders it more powerful in many ways.The part is mounted by Surface Mount.The device runs in -40°C~105°C Operating Temperature.
