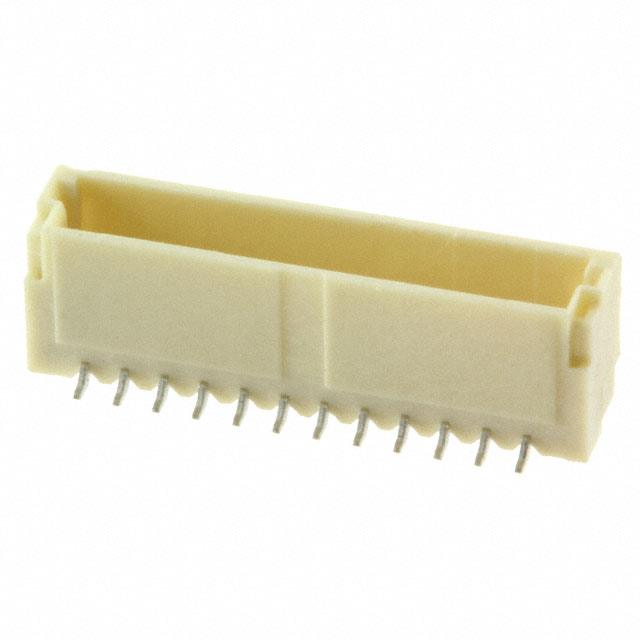

M40-3011246

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Mount :

PCB, Surface Mount

Radiation Hardening :

No

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Phosphor Bronze

DIN Conformance :

No

Mounting Type :

Surface Mount

Gender :

Male

Current Rating :

1A

UL Flammability Code :

94V-0

Number of Positions :

12

Insulation Height :

0.169 4.30mm

Pitch - Mating :

0.039 1.00mm

Contact Type :

Male Pin

Filter Feature :

No

Factory Lead Time :

13 Weeks

MIL Conformance :

No

Insulation Resistance :

100MOhm

Insulation Material :

Polyamide (PA9T), Nylon 9T

Contact Shape :

RECTANGULAR

Material :

Thermoplastic

Total Number of Contacts :

12

Style :

Board to Cable/Wire

Published :

2006

Number of Rows :

1

Termination :

Solder

Feature :

Pick and Place, Solder Retention

Voltage - Rated AC :

50V

Additional Feature :

Top Entry

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

REACH SVHC :

No SVHC

Orientation :

Straight

Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Tin

Shrouding :

Shrouded - 4 Wall

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Insulation Color :

Natural

Connector Type :

Header

Fastening Type :

Detent Lock

Material Flammability Rating :

UL94 V-0

Series :

M40

Operating Temperature :

-25°C~85°C

Mixed Contacts :

No

Package / Case :

SIL
