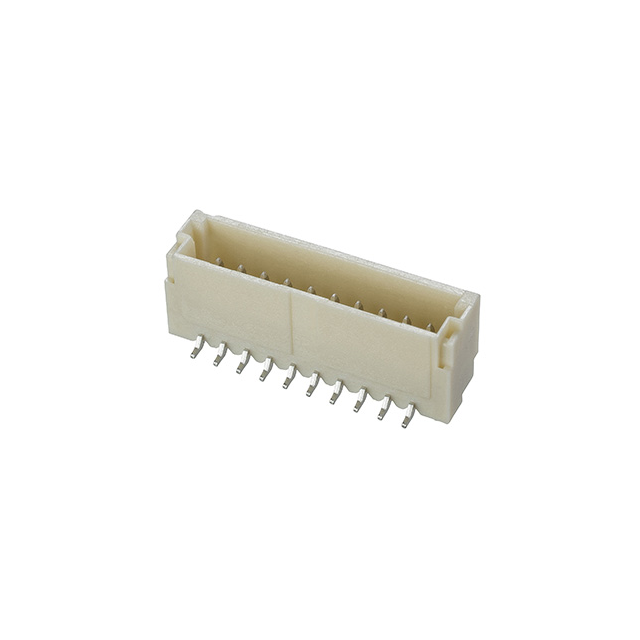

M40-3011146

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Material :

Phosphor Bronze

Insulation Material :

Polyamide (PA9T), Nylon 9T

Connector Type :

Header

Published :

2008

IEC Conformance :

No

Pitch - Mating :

0.039 1.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Number of Positions :

11

Contact Shape :

RECTANGULAR

Total Number of Contacts :

11

Operating Temperature :

-25°C~85°C

Additional Feature :

Top Entry

UL Flammability Code :

94V-0

MIL Conformance :

No

Mixed Contacts :

No

Contact Type :

Male Pin

Contact Finish - Mating :

Tin

Feature :

Pick and Place, Solder Retention

Insulation Color :

Natural

Fastening Type :

Detent Lock

Current Rating (Amps) :

1A

Termination :

Solder

Number of Rows :

1

Filter Feature :

No

Number of Positions Loaded :

All

Package / Case :

SIL

Packaging :

Bulk

Factory Lead Time :

10 Weeks

Style :

Board to Cable/Wire

Mounting Type :

Surface Mount

Voltage - Rated :

50V

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

DIN Conformance :

No

Insulation Height :

0.169 4.30mm

Mount :

Surface Mount

Shrouding :

Shrouded - 4 Wall

Series :

M40
