M40-3010646

Share

Or copy the link below:

Mfr.Part #
M40-3010646
Manufacturer
Harwin
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER SMD 6POS 1MM
Stock
18,554
In Stock :
18,554

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Headers, Male Pins
Package / Case :
SIL
Number of Positions :
6
Packaging :
Bulk
Published :
2004
Shrouding :
Shrouded - 4 Wall
Filter Feature :
No
Contact Type :
Male Pin
Current Rating :
1A
Flammability Rating :
UL94 V-0
RoHS Status :
ROHS3 Compliant
Option :
GENERAL PURPOSE
Connector Type :
Header
Termination :
Solder
Feature :
Pick and Place, Solder Retention
Insulation Resistance :
100MOhm
Material :
Thermoplastic
REACH SVHC :
No SVHC
Style :
Board to Cable/Wire
Additional Feature :
Top Entry
Max Voltage Rating (AC) :
50V
Voltage - Rated AC :
50V
Length :
8.3mm
Operating Temperature :
-25°C~85°C
Pitch - Mating :
0.039 1.00mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mounting Type :
Surface Mount
Housing Material :
Nylon
Contact Shape :
RECTANGULAR
Depth :
3.6mm
Fastening Type :
Detent Lock
Mixed Contacts :
No
Number of Rows :
1
Contact Finish - Mating :
Tin
Contact Resistance :
30mOhm
Factory Lead Time :
13 Weeks
Contact Material :
Phosphor Bronze
MIL Conformance :
No
Insulation Color :
Natural
Gender :
Male
DIN Conformance :
No
Insulation Height :
0.169 4.30mm
Material Flammability Rating :
UL94 V-0
Orientation :
Straight
Insulation Material :
Polyamide (PA9T), Nylon 9T
IEC Conformance :
No
Series :
M40
Max Current Rating :
1A
UL Flammability Code :
94V-0
Total Number of Contacts :
6
Radiation Hardening :
No
Number of Positions Loaded :
All
Mount :
PCB, Surface Mount
Introducing Headers, Male Pins Harwin M40-3010646 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:SIL, Operating Temperature:-25°C~85°C, Mounting Type:Surface Mount, M40-3010646 pinout, M40-3010646 datasheet PDF, M40-3010646 amp .Beyond Headers, Male Pins Harwin M40-3010646 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

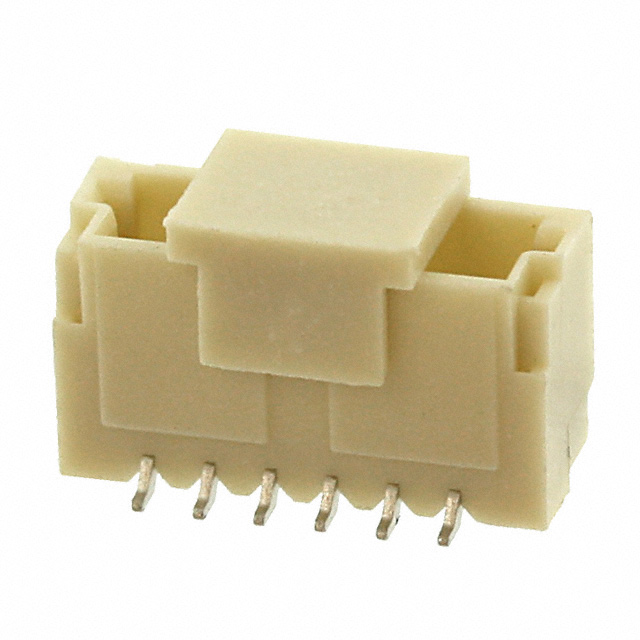

Harwin M40-3010646


M40 Series 1-Row Header Solder Phosphor Bronze Bulk Surface Mount Tin Polyamide (PA9T), Nylon 9T 6-Position Board to Cable/Wire 0.169 4.30mm Height

M40-3010646 Overview


This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the M40 Series.Furthermore, there are other features such as TOP ENTRY, to name a few.SIL refers to a package enclosing a device.In many ways, Pick and Place, Solder Retention makes it more powerful.By PCB, Surface Mount, the part is mounted.Operating temperature is set to -25°C~85°C.

M40-3010646 Features


M40 series


M40-3010646 Applications


There are a lot of Harwin Inc.
M40-3010646 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
