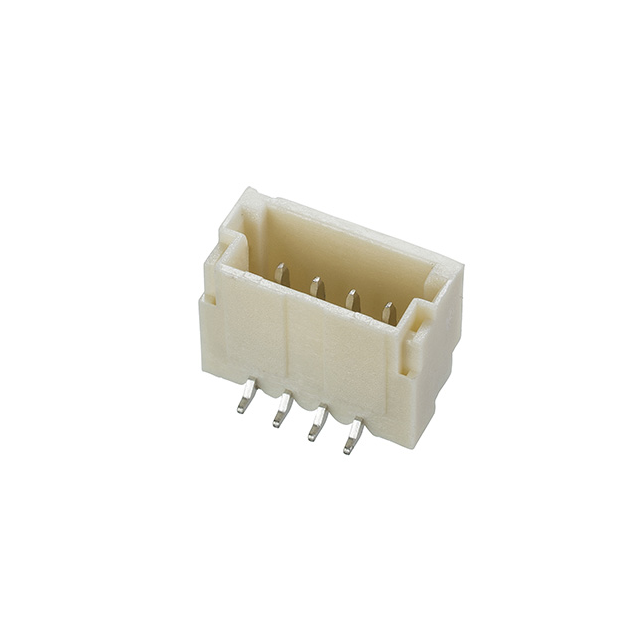

M40-3010346R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Body Breadth :

0.13 inch

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Termination :

Matte Tin (Sn) - with Nickel (Ni) barrier

Body Depth :

0.169 inch

ECCN Code :

EAR99

Operating Temperature (Max) :

85°C

JESD-609 Code :

e3

Contact Gender :

Male

Mounting Type :

BOARD

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Contact Material :

Phosphor Bronze

RoHS Status :

ROHS3 Compliant

Body/Shell Style :

PLUG

DIN Conformance :

No

Contact Finish - Mating :

Tin

Operating Temperature (Min) :

-25°C

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.039 inch

Termination Type :

Surface Mount

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Connector Type :

BOARD CONNECTOR

Reference Standard :

UL

Terminal Pitch :

1mm

Rated Current (Signal) :

1A

Contact Style :

BELLOWED TYPE

Insulation Material :

Nylon

Published :

2015

UL Flammability Code :

94V-0

Body Length or Diameter :

0.197 inch

Contact Resistance :

30mOhm

Filter Feature :

No

HTS Code :

8536.69.40.40

Additional Feature :

RoHS Compliant

Factory Lead Time :

13 Weeks

Mixed Contacts :

No

Number of Rows :

1

Mounting Style :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

100000000Ohm

Total Number of Contacts :

3

Number of Conductors :

ONE

IEC Conformance :

No
