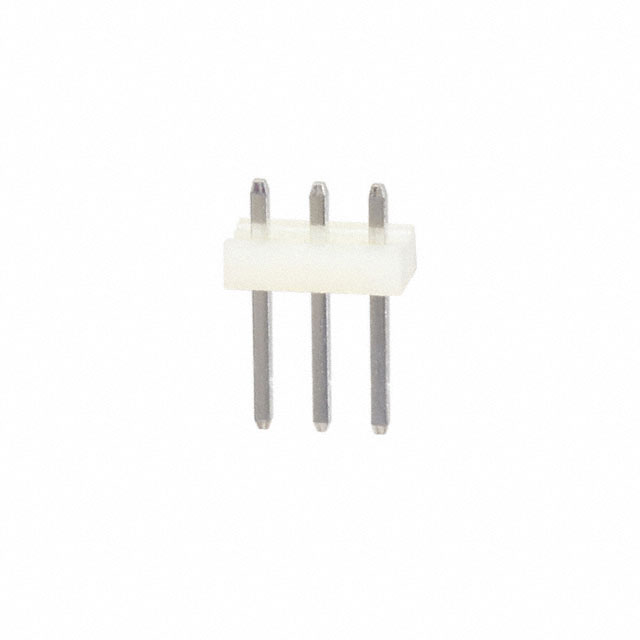

LHB-03-SA2
Or copy the link below:
- Mfr.Part #
- LHB-03-SA2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 1,240
- In Stock ：
- 1,240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Length - Post :
- 0.150 3.81mm
- Insulation Color :
- White
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 3
- Reference Standard :
- UL, CSA
- Insulation Height :
- 0.126 3.20mm
- Number of Conductors :
- ONE
- Connector Type :
- Header
- Pitch - Mating :
- 0.156 3.96mm
- Contact Type :
- Male Pin
- Mixed Contacts :
- yes
- Fastening Type :
- Push-Pull
- Body Breadth :
- 0.25 inch
- Series :
- LHB
- Operating Temperature :
- -25°C~105°C
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Contact Shape :
- Square
- Voltage - Rated :
- 250VAC
- Factory Lead Time :
- 9 Weeks
- Contact Length - Mating :
- 0.413 10.50mm
- Overall Contact Length :
- 0.689 17.50mm
- Material Flammability Rating :
- UL94 V-2
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 1
- Style :
- Board to Board
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 7A
- Reliability :
- COMMERCIAL
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mounting Option 1 :
- LOCKING
- Contact Material :
- Brass
- Termination :
- Solder
- Shrouding :
- Unshrouded
- Mounting Type :
- Through Hole
- Datasheets
- LHB-03-SA2
LHB-03-SA2 Documents
LHB Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Board 0.126 3.20mm Height
LHB-03-SA2 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the LHB Series.Devices operate at -25°C~105°C operating temperatures.
LHB-03-SA2 Features
LHB series
LHB-03-SA2 Applications
There are a lot of Adam Tech
LHB-03-SA2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
