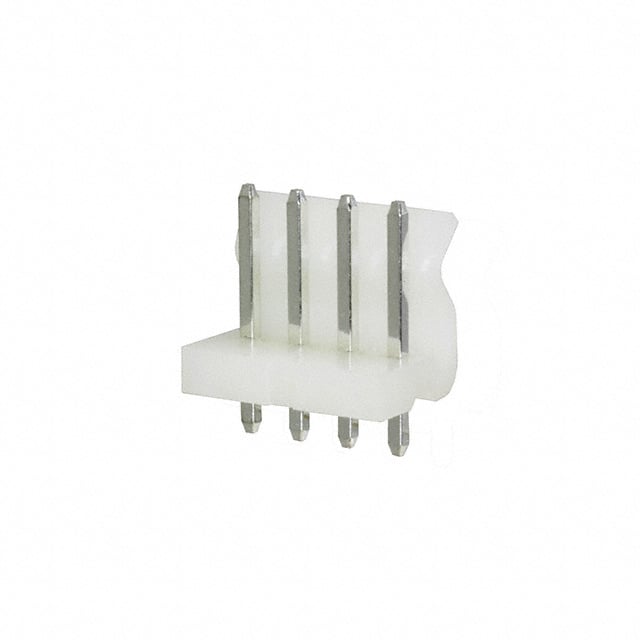

LHB-04-SA1
Or copy the link below:
- Mfr.Part #
- LHB-04-SA1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.96MM
- Stock
- 614
- In Stock ：
- 614
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.041 1.04mm
- Operating Temperature :
- -25°C~85°C
- Termination :
- Solder
- Packaging :
- Bulk
- Reliability :
- COMMERCIAL
- Insulation Color :
- White
- Reference Standard :
- UL, CSA
- Shrouding :
- Shrouded - 1 Wall
- Pitch - Mating :
- 0.156 3.96mm
- Insulation Height :
- 0.504 12.80mm
- Series :
- LHB
- Number of Positions Loaded :
- All
- Number of Positions :
- 4
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-2
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Number of Conductors :
- ONE
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- Voltage - Rated :
- 250VAC
- Orientation :
- Straight
- Body Depth :
- 0.5 inch
- Connector Type :
- Header
- Contact Finish - Mating :
- Tin
- Mixed Contacts :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Option 1 :
- LOCKING
- Overall Contact Length :
- 0.690 17.53mm
- Current Rating (Amps) :
- 5A
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Fastening Type :
- Friction Lock
- Contact Type :
- Male Pin
- Factory Lead Time :
- 9 Weeks
- Contact Length - Post :
- 0.145 3.68mm
- Contact Shape :
- Square
- Datasheets
- LHB-04-SA1
LHB-04-SA1 Documents
LHB Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
LHB-04-SA1 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the LHB Series, it belongs to the range of products of that series.-25°C~85°C Operating Temperature is the default operating temperature for the device.
LHB-04-SA1 Features
LHB series
LHB-04-SA1 Applications
There are a lot of Adam Tech
LHB-04-SA1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
