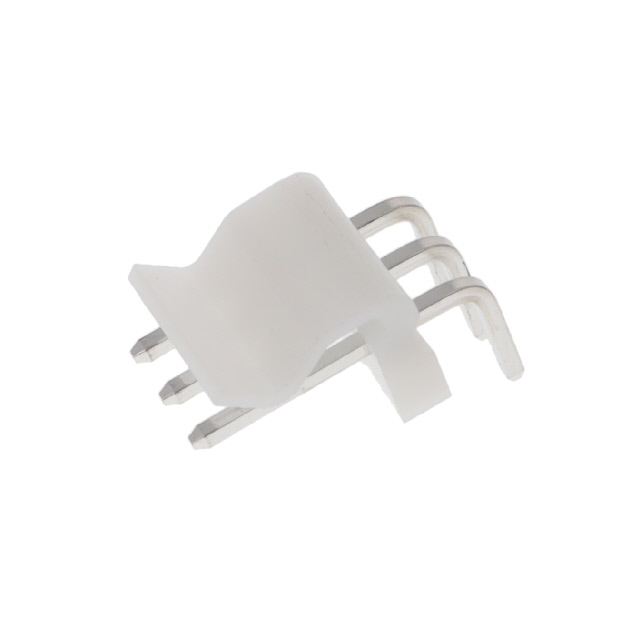

LHB-03-SB1
Or copy the link below:
- Mfr.Part #
- LHB-03-SB1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 3.96MM
- Stock
- 800
- In Stock ：
- 800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Mounting Option 1 :
- LOCKING
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- yes
- Number of Conductors :
- ONE
- Fastening Type :
- Friction Lock
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.445 11.30mm
- Number of Positions :
- 3
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Packaging :
- Bulk
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Body Breadth :
- 0.402 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -25°C~85°C
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Insulation Color :
- White
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 1 Wall
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.134 3.40mm
- Current Rating (Amps) :
- 5A
- Series :
- LHB
- Mounting Type :
- Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-2
- Voltage - Rated :
- 250VAC
- Connector Type :
- Header
- Reference Standard :
- UL, CSA
- Number of Rows :
- 1
- Factory Lead Time :
- 9 Weeks
- Datasheets
- LHB-03-SB1
LHB Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire
LHB-03-SB1 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the LHB Series.As a result, the device runs at -25°C~85°C Operating Temperature.
LHB-03-SB1 Features
LHB series
LHB-03-SB1 Applications
There are a lot of Adam Tech
LHB-03-SB1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
