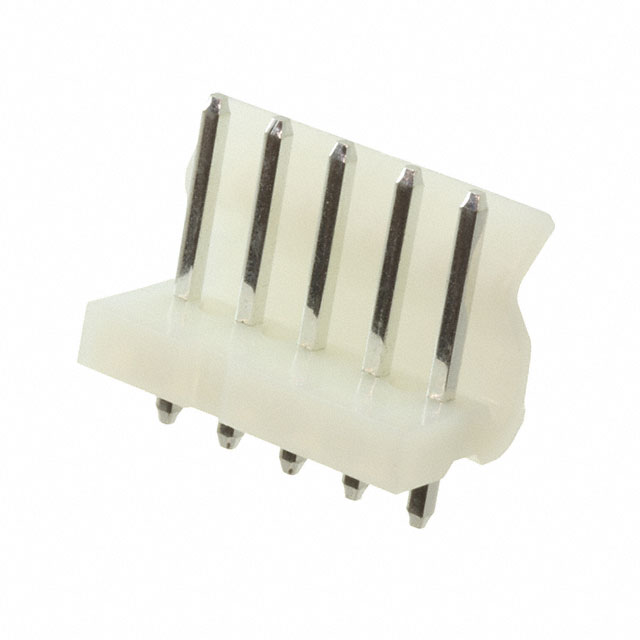

LHB-05-SA1
Or copy the link below:
- Mfr.Part #
- LHB-05-SA1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 3.96MM
- Stock
- 5,140
- In Stock ：
- 5,140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Mounting Option 1 :
- LOCKING
- Number of Conductors :
- ONE
- Operating Temperature :
- -25°C~85°C
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 1 Wall
- Mixed Contacts :
- yes
- Contact Shape :
- Square
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.504 12.80mm
- Pitch - Mating :
- 0.156 3.96mm
- Material Flammability Rating :
- UL94 V-2
- Fastening Type :
- Friction Lock
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.145 3.68mm
- Body Breadth :
- 0.402 inch
- Number of Rows :
- 1
- Voltage - Rated :
- 250VAC
- Contact Type :
- Male Pin
- Series :
- LHB
- Current Rating (Amps) :
- 5A
- Overall Contact Length :
- 0.690 17.53mm
- Packaging :
- Bulk
- Factory Lead Time :
- 9 Weeks
- Mounting Type :
- Through Hole
- Number of Positions :
- 5
- Insulation Color :
- White
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Reference Standard :
- UL, CSA
- Contact Finish - Mating :
- Tin
- Contact Length - Mating :
- 0.041 1.04mm
- Body Length or Diameter :
- 0.624 inch
- Reliability :
- COMMERCIAL
- Lead Free :
- Lead Free
- Datasheets
- LHB-05-SA1
LHB-05-SA1 Documents
LHB Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.504 12.80mm Height
LHB-05-SA1 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the LHB Series of products.There is no operating temperature for the device.
LHB-05-SA1 Features
LHB series
LHB-05-SA1 Applications
There are a lot of Adam Tech
LHB-05-SA1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
