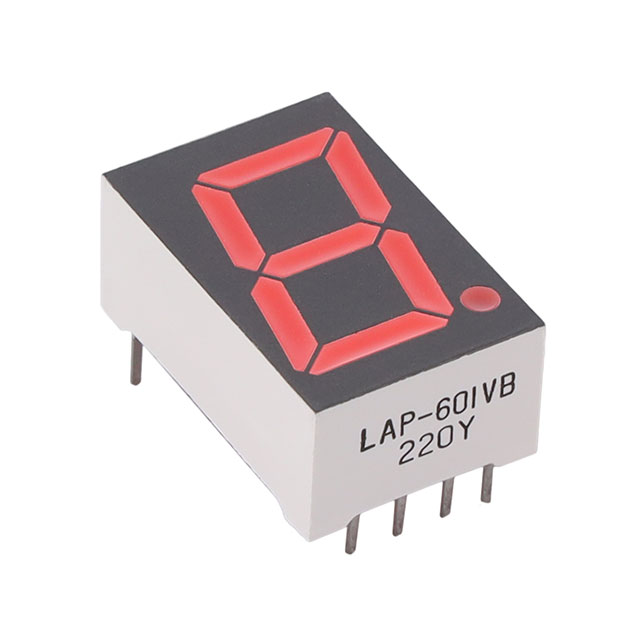

LAP-601VB

Manufacturer :

ROHM Semiconductor

Product Category :

Package :

Bulk

RoHS :

Details

Operating Temperature Range :

-25 → +75°C

Mounting Style :

Through Hole

Character Height :

14.6mm

Viewing Area Length (mm) :

8.3(mm)

Total Thickness :

8(mm)

Mounting Type :

Through Hole

Voltage - Forward (Vf) (Typ) :

1.9V

Manufacturer :

Rohm Semiconductor

Number of Segments :

7

Display Type :

7-Segment

JESD-609 Code :

e1

Display Height :

14.6 mm

Luminous Intensity :

36000UCD

Character Width :

8.3mm

Reverse Voltage :

5(V)

Minimum Operating Temperature :

-25°C

Configuration :

Common Anode

Forward Voltage-Max :

2.6 V

Product Type :

LED Displays

Forward Current-Max :

0.02 A

Product Status :

Active

Viewing Area Height (mm) :

14.6(mm)

Packaging :

Film

Wavelength :

650 nm

Mounting :

Through Hole

Maximum Forward Current :

20(mA)

Peak Wavelength :

650(nm)

Power Dissipation :

448(W)

Product Category :

LED Displays and Accessories

Emitting Color :

Red

Package / Case :

10-DIP (0.600", 15.24mm)

Forward Current :

20(mA)

Forward Voltage :

2.6@10MA(V)

Base Product Number :

LAP-601

Type :

Module

Dominant Wavelength :

650 nm

Millicandela Rating :

36mcd

Maximum Operating Temperature :

+75°C

Reach Compliance Code :

Compliant

Wavelength - Peak :

650nm

Product Depth (mm) :

19(mm)

Common Pin :

Common Anode

Digit Size (in) :

0.574(in)

Color :

Red

Pbfree Code :

yes

Number of Functions :

1

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Number of Characters :

1

Subcategory :

Displays

Power Dissipation (Max) :

448mW

Rad Hardened :

No

Pin Count :

10

Number of Elements :

8

Product Height (mm) :

8(mm)

Character Displayed :

Numeric

Brand :

Rohm Semiconductor

Product :

LED Displays

Product Length (mm) :

12.5(mm)

Digit/Alpha Size :

0.57" (14.60mm)

Operating Temperature Classification :

COMMERCIAL

Vf - Forward Voltage :

1.9 V

Character Size :

14.6 mm

Series :

L

Current - Test :

10mA

HTS Code :

8541.40.20.00

Size / Dimension :

0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm)

Illumination Color :

Red

Package Type :

DIP Module

Reverse Current :

100(uA)

Test Current (It) :

10(mA)

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)
