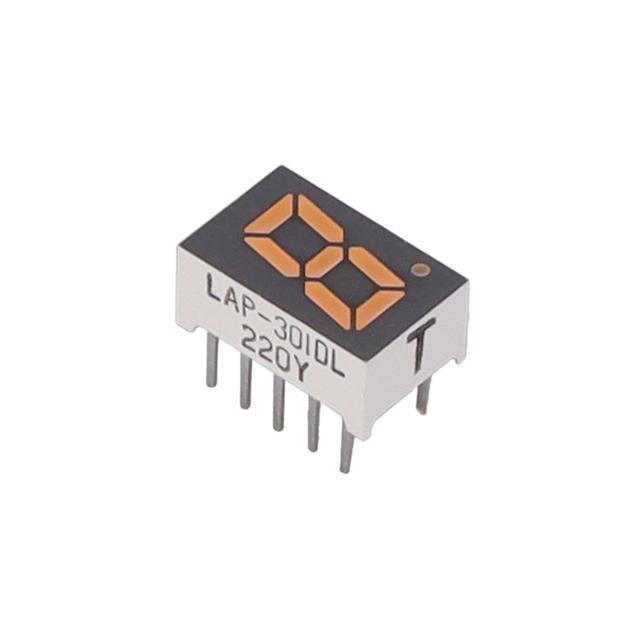

LAP-301DL

Manufacturer :

ROHM Semiconductor

Product Category :

Subcategory :

Displays

Reverse Voltage :

5(V)

Base Product Number :

LAP-301

Current - Test :

10mA

Rad Hardened :

No

Product :

LED Displays

Viewing Area Length (mm) :

4(mm)

Reach Compliance Code :

Compliant

Operating Temperature Classification :

COMMERCIAL

Peak Wavelength :

605(nm)

Maximum Forward Current :

20(mA)

Mounting Style :

Through Hole

Character Displayed :

Numeric

Wavelength :

605 nm

Forward Current-Max :

0.02 A

Illumination Color :

Orange

Package / Case :

10-DIP (0.300", 7.62mm)

Maximum Operating Temperature :

+ 75 C

Lifecycle Status :

Production (Last Updated: 2 years ago)

RoHS :

Non-Compliant

Product Height (mm) :

5(mm)

Common Pin :

Common Cathode

JESD-609 Code :

e1

Product Category :

LED Displays and Accessories

Forward Current :

20(mA)

Brand :

Rohm Semiconductor

Digit/Alpha Size :

0.32" (8.00mm)

Manufacturer :

Rohm Semiconductor

Power Dissipation :

448(W)

Product Length (mm) :

11(mm)

Voltage - Forward (Vf) (Typ) :

1.9V

Product Type :

LED Displays

Number of Characters :

1

Viewing Area Height (mm) :

8(mm)

Series :

L

Character Size :

8 mm

Vf - Forward Voltage :

1.9 V

Minimum Operating Temperature :

- 25 C

Type :

Module

Product Depth (mm) :

7(mm)

Wavelength - Peak :

605nm

Digit Size (in) :

0.31(in)

Number of Functions :

1

Test Current (It) :

10(mA)

Total Thickness :

5(mm)

Display Height :

8 mm

Color :

Orange

Package Type :

DIP Module

Emitting Color :

Orange

Forward Voltage-Max :

2.6 V

Number of Elements :

8

Luminous Intensity :

250000UCD

Packaging :

Film

Power Dissipation (Max) :

448mW

Size / Dimension :

0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm)

Pin Count :

10

Configuration :

Common Cathode

Display Type :

7-Segment

Millicandela Rating :

250mcd

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Forward Voltage :

2.6@10MA(V)

Package :

Bulk

Mounting :

Through Hole

Reverse Current :

100(uA)

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code :

8541.40.20.00

Product Status :

Active
