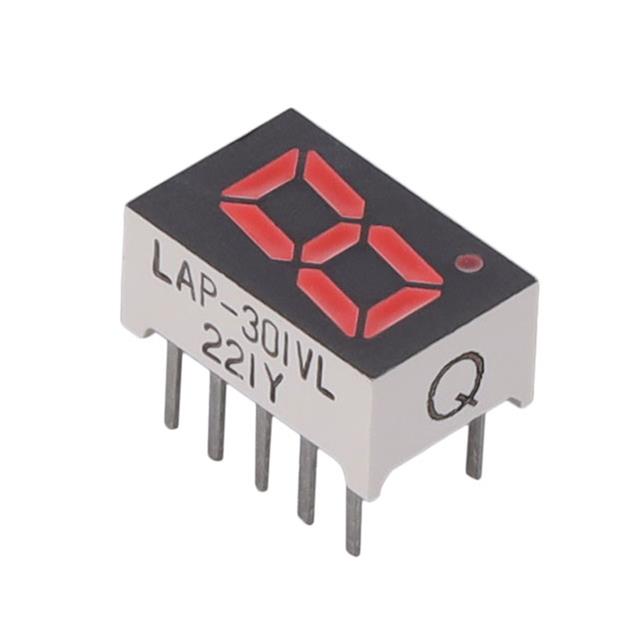

LAP-301VL

Manufacturer :

ROHM Semiconductor

Product Category :

Number of Functions :

1

Packaging :

Film

Maximum Forward Current :

20(mA)

Product Depth (mm) :

7(mm)

Display Height :

8 mm

Vf - Forward Voltage :

1.9 V

Rad Hardened :

No

Operating Temperature Range :

-25 → +75°C

Product Height (mm) :

5(mm)

Display Type :

7-Segment

Viewing Area Height (mm) :

8(mm)

Character Width :

4mm

Character Displayed :

Numeric

Millicandela Rating :

36mcd

Package / Case :

10-DIP (0.300", 7.62mm)

Test Current (It) :

10(mA)

Pin Count :

10

For Use With :

General Electronic Equipments

Reach Compliance Code :

Compliant

Character Size :

8 mm

Base Product Number :

LAP-301

Total Thickness :

5(mm)

Manufacturer :

Rohm Semiconductor

HTS Code :

8541.40.20.00

Wavelength - Peak :

650nm

Package :

Bulk

Product Category :

LED Displays and Accessories

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Product Length (mm) :

11(mm)

Operating Temperature Classification :

COMMERCIAL

Wavelength :

650 nm

Color@Wavelength :

Red

Dominant Wavelength :

650 nm

Mounting :

Through Hole

Peak Wavelength :

650(nm)

Size / Dimension :

0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm)

Minimum Operating Temperature :

-25°C

Luminous Intensity :

36000UCD

Forward Voltage-Max :

2.6 V

Forward Current :

20(mA)

Number of Elements :

8

Digit Size (in) :

0.31(in)

Reverse Voltage :

5(V)

Reverse Current :

100(uA)

Subcategory :

Displays

Brand :

Rohm Semiconductor

Maximum Operating Temperature :

+75°C

Number of Segments :

7

Power Dissipation :

448(W)

RoHS :

Details

Package Type :

DIP Module

Character Height :

8mm

Series :

L

Product :

LED Displays

Number of Characters :

1

Current - Test :

10mA

Voltage - Forward (Vf) (Typ) :

1.9V

Mounting Type :

Through Hole

Common Pin :

Common Cathode

Forward Voltage :

2.6@10MA(V)

Emitting Color :

Red

Illumination Color :

Red

Digit/Alpha Size :

0.32" (8.00mm)

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Color :

Red

Type :

Module

Product Status :

Active

JESD-609 Code :

e1

Product Type :

LED Displays

Forward Current-Max :

0.02 A

Viewing Area Length (mm) :

4(mm)

Power Dissipation (Max) :

448mW

Configuration :

Common Cathode

Mounting Style :

Through Hole
