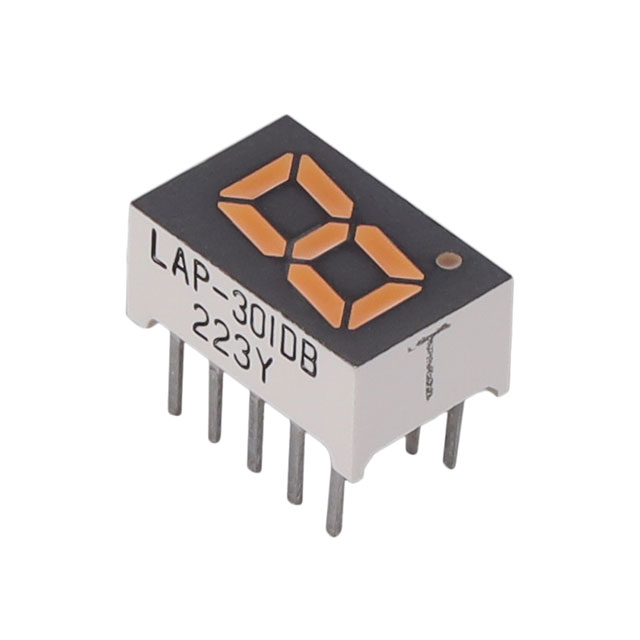

LAP-301DB

Manufacturer :

ROHM Semiconductor

Product Category :

Packaging :

Film

Number of Characters :

1

Package / Case :

10-DIP (0.300", 7.62mm)

Series :

L

Wavelength - Peak :

605nm

Digit Size (in) :

0.31(in)

Subcategory :

Displays

Digit/Alpha Size :

0.32" (8.00mm)

Millicandela Rating :

250mcd

Reach Compliance Code :

Compliant

Product Type :

LED Displays

JESD-609 Code :

e1

Mounting Style :

Through Hole

HTS Code :

8541.40.20.00

Reverse Current :

100(uA)

RoHS :

Non-Compliant

Operating Temperature Classification :

COMMERCIAL

Type :

Module

Mount :

Through Hole

Character Width :

4 mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Product Length (mm) :

11(mm)

Size / Dimension :

0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm)

Forward Current :

20(mA)

Character Height :

8 mm

Package :

Bulk

Base Product Number :

LAP-301

Vf - Forward Voltage :

1.9 V

Character Size :

8 mm

Mounting :

Through Hole

Product Category :

LED Displays and Accessories

Minimum Operating Temperature :

- 25 C

Manufacturer :

Rohm Semiconductor

Min Operating Temperature :

-25 °C

Forward Current-Max :

0.02 A

Viewing Area Height (mm) :

8(mm)

Product Status :

Active

Current - Test :

10mA

Lifecycle Status :

Production (Last Updated: 2 years ago)

Wavelength :

605 nm

Maximum Operating Temperature :

+ 75 C

Configuration :

Common Anode

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Peak Wavelength :

605(nm)

Voltage - Forward (Vf) (Typ) :

1.9V

Color :

Orange

Color@Wavelength :

Amber

Package Type :

DIP Module

Rad Hardened :

No

Max Operating Temperature :

75 °C

Test Current (It) :

10(mA)

Product :

LED Displays

Forward Voltage :

2.6@10MA(V)

Number of Segments :

7

Number of Elements :

8

Product Height (mm) :

5(mm)

Display Height :

8 mm

Luminous Intensity :

250 mcd

Product Depth (mm) :

7(mm)

Forward Voltage-Max :

2.6 V

Width :

7 mm

Illumination Color :

Orange

Height :

11 mm

Total Thickness :

5(mm)

Emitting Color :

Orange

Display Type :

7-Segment

Common Pin :

Common Anode

Character Displayed :

Numeric

Viewing Area Length (mm) :

4(mm)

Maximum Forward Current :

20(mA)

Power Dissipation (Max) :

448mW

Number of Functions :

1

Power Dissipation :

448(W)

Reverse Voltage :

5(V)

Brand :

Rohm Semiconductor

Pin Count :

10
