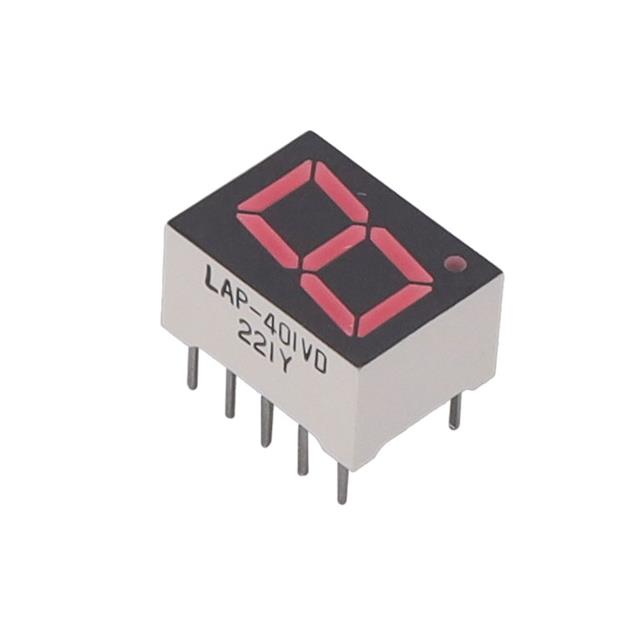

LAP-401VD

Manufacturer :

ROHM Semiconductor

Product Category :

Forward Current :

20(mA)

Luminous Intensity :

36000UCD

Packaging :

Film

Base Product Number :

LAP-401

Size / Dimension :

0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm)

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Reverse Current :

100(uA)

Maximum Operating Temperature :

+75°C

Maximum Forward Current :

20(mA)

Rad Hardened :

No

Reverse Voltage :

5(V)

Common Pin :

Common Anode

Total Thickness :

7(mm)

Digit/Alpha Size :

0.40" (10.16mm)

Mounting Type :

Through Hole

Number of Segments :

7

Minimum Operating Temperature :

-25°C

HTS Code :

8541.40.20.00

Product Depth (mm) :

9.6(mm)

Millicandela Rating :

36mcd

Mounting Style :

Through Hole

Product :

LED Displays

Viewing Area Length (mm) :

5.57(mm)

Dominant Wavelength :

650 nm

Series :

D

Vf - Forward Voltage :

1.9 V

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Type :

Module

Product Category :

LED Displays and Accessories

Display Type :

7-Segment

Subcategory :

Displays

Forward Current-Max :

0.02 A

Configuration :

Common Anode

Number of Functions :

1

Package / Case :

10-DIP (0.400", 10.16mm)

Wavelength - Peak :

650nm

Product Length (mm) :

13(mm)

Reach Compliance Code :

Compliant

Emitting Color :

Red

Character Displayed :

Numeric

Number of Characters :

1

Character Size :

10.16 mm

Number of Elements :

8

Color :

Red

Pin Count :

10

Illumination Color :

Red

Product Height (mm) :

7(mm)

RoHS :

Non-Compliant

Pbfree Code :

yes

Product Status :

Active

Character Width :

5.6mm

Product Type :

LED Displays

Test Current (It) :

10(mA)

Package :

Bulk

Power Dissipation :

448(W)

Display Height :

10.16 mm

Operating Temperature Range :

-25 → +75°C

Viewing Area Height (mm) :

10.16(mm)

Package Type :

DIP Module

Mounting :

Through Hole

Digit Size (in) :

0.4(in)

Manufacturer :

Rohm Semiconductor

Brand :

Rohm Semiconductor

Peak Wavelength :

650(nm)

Character Height :

10.2mm

Wavelength :

650 nm

Current - Test :

10mA

Voltage - Forward (Vf) (Typ) :

1.9V

JESD-609 Code :

e1

Forward Voltage-Max :

2.6 V

For Use With :

General Electronic Equipments

Power Dissipation (Max) :

448mW

Operating Temperature Classification :

COMMERCIAL

Lifecycle Status :

Production (Last Updated: 2 years ago)

Forward Voltage :

2.6@10MA(V)
