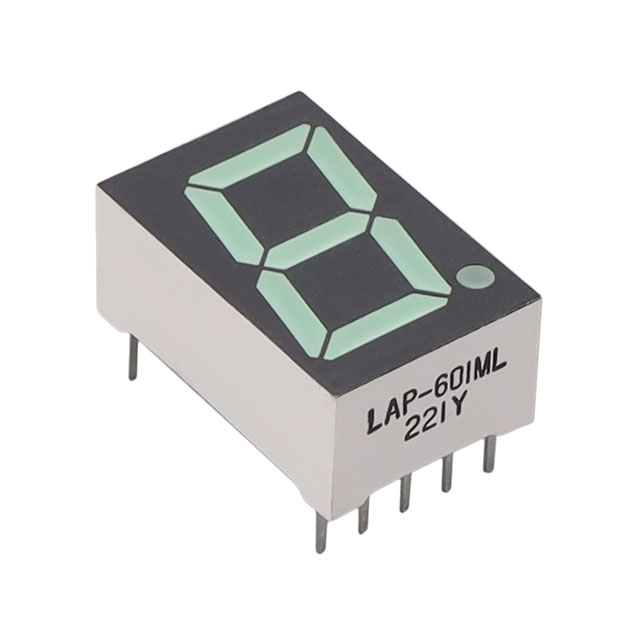

LAP-601ML

Manufacturer :

ROHM Semiconductor

Product Category :

HTS Code :

8541.40.20.00

Test Current (It) :

10(mA)

Packaging :

Film

Mounting Type :

Through Hole

Subcategory :

Displays

Display Type :

7-Segment

Maximum Forward Current :

20(mA)

Operating Temperature Classification :

COMMERCIAL

Vf - Forward Voltage :

1.9 V

Common Pin :

Common Cathode

Package / Case :

10-DIP (0.600", 15.24mm)

Product Status :

Active

RoHS :

Details

Dominant Wavelength :

572 nm

Display Height :

14.6 mm

JESD-609 Code :

e1

Rad Hardened :

No

Power Dissipation (Max) :

448mW

Millicandela Rating :

100mcd

Number of Elements :

8

Emitting Color :

Green

Power Dissipation :

448(W)

Total Thickness :

8(mm)

For Use With :

General Electronic Equipments

Number of Characters :

1

Wavelength - Peak :

572nm

Forward Current :

20(mA)

Brand :

Rohm Semiconductor

Product Depth (mm) :

19(mm)

Series :

L

Package Type :

DIP Module

Current - Test :

10mA

Product Height (mm) :

8(mm)

Mounting :

Through Hole

Viewing Area Length (mm) :

8.3(mm)

Maximum Operating Temperature :

+75°C

Product Type :

LED Displays

Forward Current-Max :

0.02 A

Lifecycle Status :

Production (Last Updated: 2 years ago)

Product Category :

LED Displays and Accessories

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Wavelength :

572 nm

Voltage - Forward (Vf) (Typ) :

1.9V

Digit Size (in) :

0.574(in)

Pbfree Code :

yes

Reverse Current :

100(uA)

Reverse Voltage :

5(V)

Illumination Color :

Green

Minimum Operating Temperature :

-25°C

Reach Compliance Code :

Compliant

Pin Count :

10

Character Height :

14.6mm

Number of Segments :

7

Number of Functions :

1

Character Displayed :

Numeric

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Viewing Area Height (mm) :

14.6(mm)

Manufacturer :

Rohm Semiconductor

Package :

Bulk

Forward Voltage-Max :

2.6 V

Character Width :

8.3mm

Type :

Module

Peak Wavelength :

572(nm)

Forward Voltage :

2.6@10MA(V)

Product Length (mm) :

12.5(mm)

Character Size :

14.6 mm

Digit/Alpha Size :

0.57" (14.60mm)

Base Product Number :

LAP-601

Luminous Intensity :

100000UCD

Mounting Style :

Through Hole

Operating Temperature Range :

-25 → +75°C

Size / Dimension :

0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm)

Product :

LED Displays

Color :

Green

Configuration :

Common Cathode
