JR21RK-10SC

Share

Or copy the link below:

Mfr.Part #
JR21RK-10SC
Manufacturer
Hirose
Package / Case
Datasheet
Download
Description
CONN RCPT HSG FMALE 10POS PNL MT
Stock
5
In Stock :
5

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Hirose
Product Category :
Circular Connector Housings
Housing Color :
Silver
Material Flammability Rating :
UL94 V-0
Filter Feature :
No
JESD-609 Code :
e4
Series :
JR
Orientation :
Keyed
Body Length or Diameter :
1.26 inch
Operating Temperature :
-25°C~85°C
Option :
GENERAL PURPOSE
Contact Resistance :
5mOhm
Number of Ports :
1
Empty Shell :
No
Polarization Key :
POLARIZED HOUSING
DIN Conformance :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Fastening Type :
Threaded
Mount :
Flanges, Panel
Mounting Feature :
Flange
Insert Material :
Polycarbonate (PC)
Connector Type :
Receptacle Housing
IEC Conformance :
No
Factory Lead Time :
8 Weeks
Mounting Type :
Panel Mount
Shell Material :
Aluminum Alloy
Shell Finish :
Nickel
Total Number of Contacts :
10
Published :
2012
Note :
Contacts Not Included
Type :
For Female Sockets
Reliability :
COMMERCIAL
MIL Conformance :
No
Reach Compliance Code :
Unknown
Body Breadth :
1.26 inch
Contact Type :
Crimp
Contact Material :
COPPER ALLOY
Contact Shape :
Circular
Shielding :
Unshielded
Pbfree Code :
yes
Shell Size - Insert :
21
Contact Size :
1.6mm
Reference Standard :
UL
Packaging :
Bulk
Body Depth :
1.087 inch
RoHS Status :
RoHS Compliant
Number of Positions :
10
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Datasheets
JR21RK-10SC
Introducing Circular Connector Housings Hirose JR21RK-10SC from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C~85°C, Mounting Type:Panel Mount, Type:For Female Sockets, JR21RK-10SC pinout, JR21RK-10SC datasheet PDF, JR21RK-10SC amp .Beyond Circular Connector Housings Hirose JR21RK-10SC ,we also offer 1432460, 206037-1, 206150-1, Our vast inventory has you covered. Contact us now for immediate solutions.

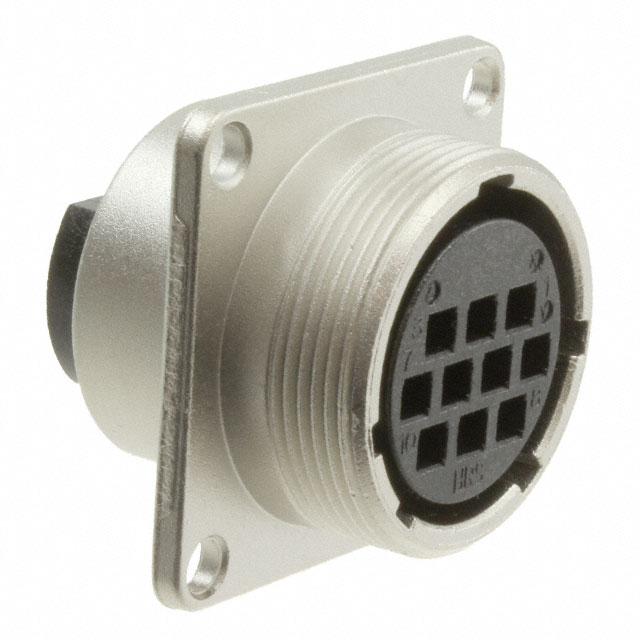

Hirose JR21RK-10SC


Receptacle Housing Aluminum Alloy Panel Mount Nickel 10 Positions Bulk Threaded Unshielded Contacts Not Included JR

JR21RK-10SC Overview


Currently, it is packaged in Receptacle Housing.The mounting type of the device is Panel Mount.A Bulk case is used to package the product.A product of the JR Series, it belongs to the range of products of that series.In addition to its benefits, this part shares a number of advantages with other For Female Sockets products.Using a Flanges, Panel socket is required in order to mount the item.There are 1 ports available for a variety of tasks to be performed on it.

JR21RK-10SC Features


JR series


JR21RK-10SC Applications


There are a lot of Hirose Electric Co Ltd
JR21RK-10SC Circular Connectors applications.


  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
  • Data Acquisition Systems
  • Handheld Terminal Interface
