JR21RK-10P

Share

Or copy the link below:

Mfr.Part #
JR21RK-10P
Manufacturer
Hirose
Package / Case
Datasheet
Download
Description
CONN RCPT MALE 10P SOLDER CUP
Stock
7
In Stock :
7

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Hirose
Product Category :
Circular Connector Assemblies
HTS Code :
8536.69.40.20
Depth :
32mm
Series :
JR
Termination :
Solder Cup
JESD-609 Code :
e4
Number of Ports :
1
Published :
2009
Filter Feature :
No
Backshell Type :
Solid
Orientation :
Keyed
Reference Standard :
UL
Shell Finish :
Nickel
Material Flammability Rating :
UL94 V-0
Contact Material :
COPPER ALLOY
Length :
26.6mm
Current Rating :
10A
Shielding :
Unshielded
RoHS Status :
RoHS Compliant
Voltage - Rated :
250VAC 350VDC
Shell Material :
Aluminum Alloy
Mixed Contacts :
No
Packaging :
Bulk
Contact Gender :
Male
Reliability :
COMMERCIAL
Number of Positions :
10
Lead Free :
Lead Free
Additional Feature :
SOLDERING TYPE
Connector Type :
Receptacle, Male Pins
Total Number of Contacts :
10
Max Current Rating :
10A
Fastening Type :
Threaded
MIL Conformance :
No
Contact Finish - Mating :
Silver
Gender :
FEMALE
Factory Lead Time :
12 Weeks
Mounting Feature :
Flange
Voltage - Rated AC :
250V
Shell Size - Insert :
21
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mount :
Flanges, Panel
Mounting Type :
Panel Mount
Contact Resistance :
5mOhm
Body Breadth :
1.26 inch
Polarization Key :
POLARIZED HOUSING
DIN Conformance :
No
Pbfree Code :
yes
Contact Style :
RND PIN-SKT
ECCN Code :
EAR99
Empty Shell :
No
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Operating Temperature :
-25°C~85°C
Insert Material :
Phenol Formaldehyde (PF)
Option :
GENERAL PURPOSE
IEC Conformance :
No
Radiation Hardening :
No
Cable Opening :
0.941 (23.90mm)
Datasheets
JR21RK-10P
Introducing Circular Connector Assemblies Hirose JR21RK-10P from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Operating Temperature:-25°C~85°C, JR21RK-10P pinout, JR21RK-10P datasheet PDF, JR21RK-10P amp .Beyond Circular Connector Assemblies Hirose JR21RK-10P ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

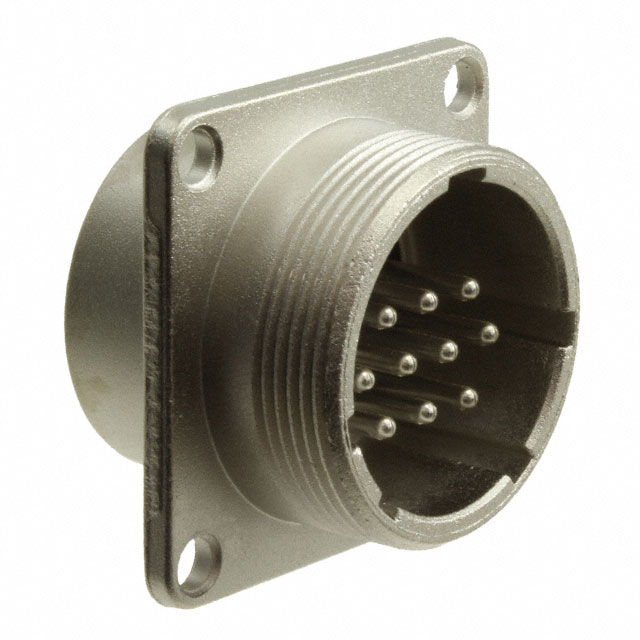

Hirose JR21RK-10P


Receptacle, Male Pins Aluminum Alloy Panel Mount 10 Positions Solder Cup Silver Nickel Bulk Keyed Threaded

JR21RK-10P Overview


This product is packaged in a Receptacle, Male Pins box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the JR Series.Furthermore, there are other features such as SOLDERING TYPE, to name a few.By Flanges, Panel, the part is mounted.Operating temperature is set to -25°C~85°C.

JR21RK-10P Features


JR series


JR21RK-10P Applications


There are a lot of Hirose Electric Co Ltd
JR21RK-10P Circular Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
