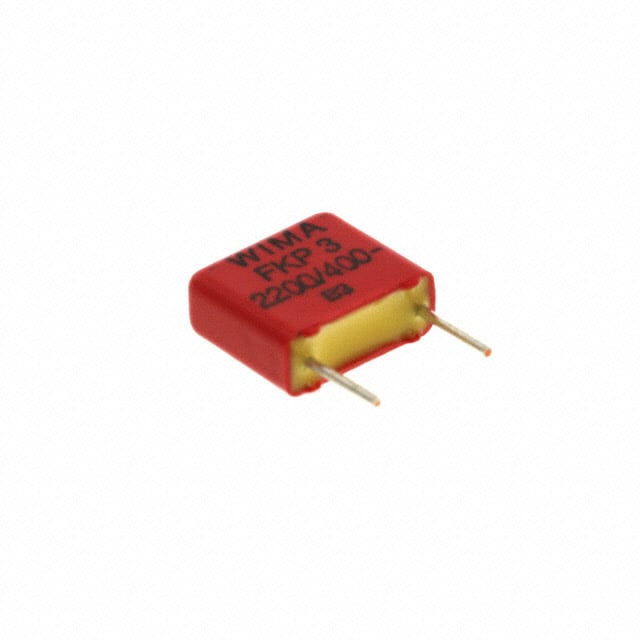

FKP3G012202C00MSSD
Or copy the link below:
- Mfr.Part #
- FKP3G012202C00MSSD
- Manufacturer
- WIMA
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 2200PF 20% 400VDC RAD
- Stock
- 45,192
- In Stock ：
- 45,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WIMA
- Product Category :
- Film Capacitors
- Capacitor Type :
- FILM CAPACITOR
- Operating Temperature :
- -55°C~100°C
- Rated (DC) Voltage (URdc) :
- 400V
- Terminal Shape :
- Wire
- Pbfree Code :
- yes
- Size Code :
- 3916
- Applications :
- High Frequency, Switching; High Pulse, DV/DT
- JESD-609 Code :
- e3
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Temperature Coefficient :
- -200ppm/Cel ppm/°C
- Capacitance :
- 2200pF
- Termination :
- PC Pins
- Height Seated (Max) :
- 0.354 9.00mm
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Width :
- 4mm
- Terminal Pitch :
- 7.5mm
- Voltage - Rated DC :
- 400V
- Length :
- 10mm
- Packaging :
- Bulk
- Package / Case :
- Radial
- Tolerance :
- ±20%
- Terminal Finish :
- Tin (Sn)
- Rated (AC) Voltage (URac) :
- 250V
- Factory Lead Time :
- 11 Weeks
- Number of Terminations :
- 2
- Voltage - Rated AC :
- 250V
- Additional Feature :
- RATED AC VOLTAGE(V) : 250
- Dielectric Material :
- Polypropylene (PP)
- Size / Dimension :
- 0.394Lx0.157W 10.00mmx4.00mm
- HTS Code :
- 8532.25.00.70
- Mounting Type :
- Through Hole
- Lead Spacing :
- 0.295 7.50mm
- Surface Mount :
- No
- Datasheets
- FKP3G012202C00MSSD
FKP3G012202C00MSSD Documents
2200pF Film Capacitor ±20% Radial PC Pins 400V-DC 250V-AC Polypropylene (PP)
FKP3G012202C00MSSD Overview
To function, systems must have a rated (DC) voltage (URdc) of 400V.A 0.295 7.50mm lead spacing is used in this electrical device.For powering systems, an AC voltage of 250V is required.In a temperature range of -55°C~100°C, the device can be operated.Having a temperature coefficient of -200ppm/Cel ppm/°C, this capacitor is not affected by temperature.
FKP3G012202C00MSSD Features
a rated (DC) voltage (URdc) of 400V
an internal rated (AC) voltage (URac) of 250V
a temperature coefficient of -200ppm/Cel ppm/°C
FKP3G012202C00MSSD Applications
There are a lot of WIMA
FKP3G012202C00MSSD applications of film capacitors.
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
