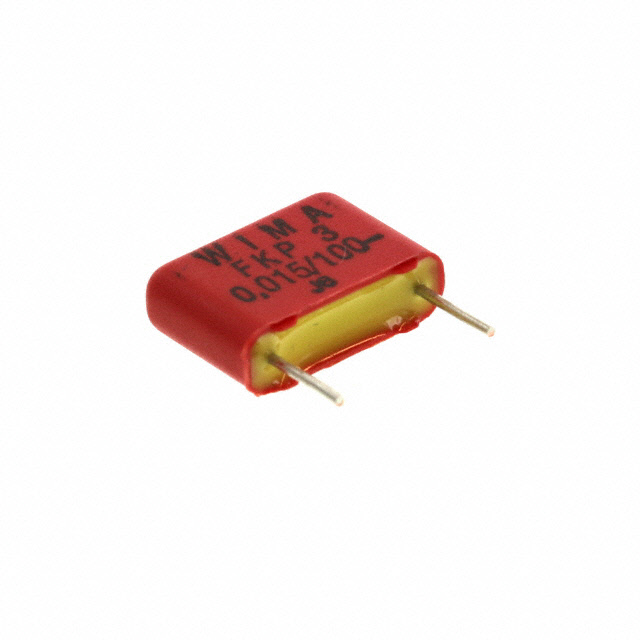

FKP3D021503D00KSSD
Or copy the link below:
- Mfr.Part #
- FKP3D021503D00KSSD
- Manufacturer
- WIMA
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.015UF 10% 100VDC RAD
- Stock
- 21,416
- In Stock ：
- 21,416
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WIMA
- Product Category :
- Film Capacitors
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Length :
- 13mm
- Operating Temperature :
- -55°C~100°C
- Capacitance :
- 0.015µF
- Additional Feature :
- RATED AC VOLTAGE(V) : 63
- Terminal Finish :
- Tin (Sn)
- Lead Spacing :
- 0.394 10.00mm
- Packaging :
- Bulk
- Size / Dimension :
- 0.512Lx0.157W 13.00mmx4.00mm
- Tolerance :
- ±10%
- ECCN Code :
- EAR99
- Terminal Pitch :
- 10mm
- Terminal Shape :
- Wire
- Voltage - Rated DC :
- 100V
- Height Seated (Max) :
- 0.374 9.50mm
- Number of Terminations :
- 2
- Factory Lead Time :
- 11 Weeks
- Dielectric Material :
- Polypropylene (PP)
- Capacitor Type :
- FILM CAPACITOR
- Width :
- 4mm
- Size Code :
- 5116
- JESD-609 Code :
- e3
- Surface Mount :
- No
- Termination :
- PC Pins
- Mounting Type :
- Through Hole
- Temperature Coefficient :
- -200ppm/Cel ppm/°C
- HTS Code :
- 8532.25.00.70
- Package / Case :
- Radial
- RoHS Status :
- ROHS3 Compliant
- Rated (DC) Voltage (URdc) :
- 100V
- Applications :
- High Frequency, Switching; High Pulse, DV/DT
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 63V
- Rated (AC) Voltage (URac) :
- 63V
- Datasheets
- FKP3D021503D00KSSD
0.015μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polypropylene (PP)
FKP3D021503D00KSSD Overview
To function, systems require a rated (DC) voltage (URdc) of 100V.Its lead spacing is 0.394 10.00mm.System power requires an AC voltage rating of 63V (URac).Temperatures of -55°C~100°C allow the device to operate.Capacitor temperature coefficient is -200ppm/Cel ppm/°C.
FKP3D021503D00KSSD Features
a rated (DC) voltage (URdc) of 100V
an internal rated (AC) voltage (URac) of 63V
a temperature coefficient of -200ppm/Cel ppm/°C
FKP3D021503D00KSSD Applications
There are a lot of WIMA
FKP3D021503D00KSSD applications of film capacitors.
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
