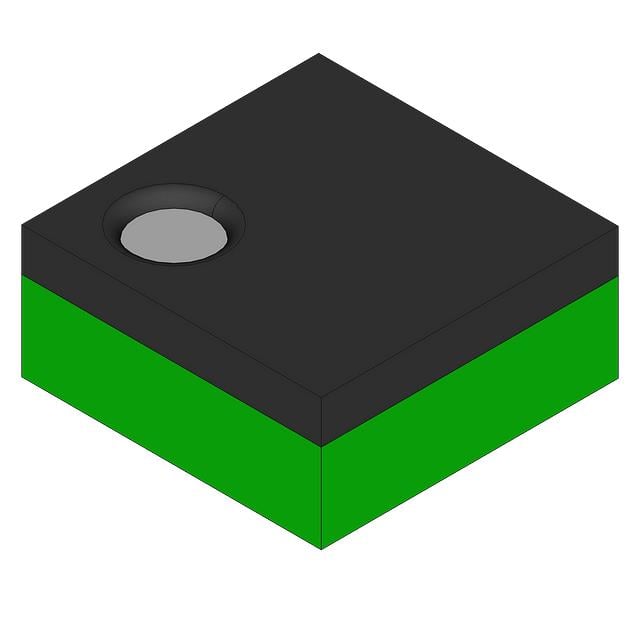

FDZ204P
Or copy the link below:
- Mfr.Part #
- FDZ204P
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- 9-WFBGA
- Datasheet
- Download
- Description
- MOSFET P-CH 20V 4.5A 9BGA
- Stock
- 14,705
- In Stock ：
- 14,705
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Product Status :
- Obsolete
- Supplier Device Package :
- 9-BGA (2x2.1)
- FET Feature :
- -
- Current - Continuous Drain (Id) @ 25°C :
- 4.5A (Ta)
- Vgs (Max) :
- ±12V
- Series :
- PowerTrench®
- Package / Case :
- 9-WFBGA
- Vgs(th) (Max) @ Id :
- 1.5V @ 250µA
- Power Dissipation (Max) :
- 1.8W (Ta)
- Rds On (Max) @ Id, Vgs :
- 45mOhm @ 4.5A, 4.5V
- Input Capacitance (Ciss) (Max) @ Vds :
- 884 pF @ 10 V
- Package :
- Bulk
- Technology :
- MOSFET (Metal Oxide)
- Mounting Type :
- Surface Mount
- Gate Charge (Qg) (Max) @ Vgs :
- 13 nC @ 4.5 V
- Drain to Source Voltage (Vdss) :
- 20 V
- Operating Temperature :
- -55°C ~ 150°C (TJ)
- Drive Voltage (Max Rds On, Min Rds On) :
- 2.5V, 4.5V
- FET Type :
- P-Channel
- Datasheets
- FDZ204P
MOSFET (Metal Oxide) P-Channel 45mOhm @ 4.5A, 4.5V ±12V 884 pF @ 10 V 13 nC @ 4.5 V 20 V 9-WFBGA
FDZ204P Overview
An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 884 pF @ 10 V is its maximum input capacitance.For this transistor to work, a voltage 20 V is required between drain and source (Vdss).
FDZ204P Features
a 20 V drain to source voltage (Vdss)
FDZ204P Applications
There are a lot of Fairchild Semiconductor
FDZ204P applications of single MOSFETs transistors.
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
