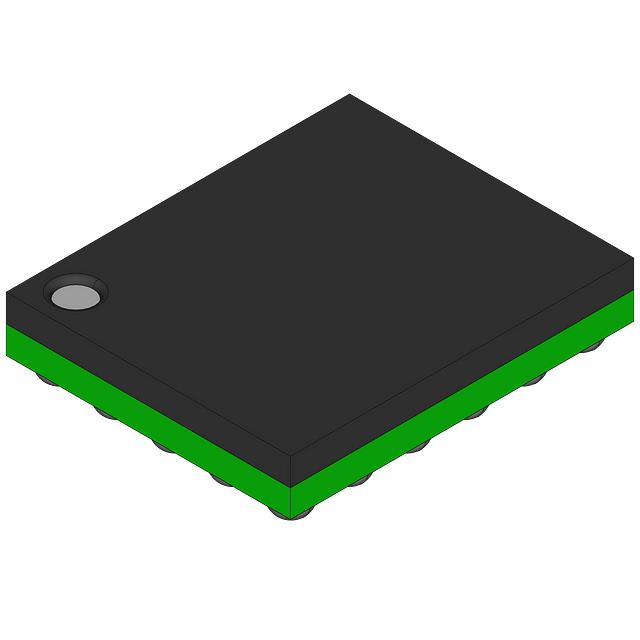

FDZ206P

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Mounting Type :

Surface Mount

Operating Mode :

ENHANCEMENT MODE

Surface Mount :

yes

Number of Elements :

1

Terminal Finish :

NOT SPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Continuous Drain (Id) @ 25°C :

13A Ta

Input Capacitance (Ciss) (Max) @ Vds :

4.28pF @ 10V

Transistor Application :

SWITCHING

Operating Temperature :

-55°C~150°C TJ

Reach Compliance Code :

Unknown

Package / Case :

30-WFBGA

Rds On (Max) @ Id, Vgs :

9.5m Ω @ 13A, 4.5V

Packaging :

Tape and Reel (TR)

Number of Terminations :

30

Transistor Element Material :

SILICON

Pbfree Code :

No

Terminal Position :

BOTTOM

Gate Charge (Qg) (Max) @ Vgs :

53nC @ 4.5V

Vgs(th) (Max) @ Id :

1.5V @ 250µA

Drain-source On Resistance-Max :

0.0095Ohm

Configuration :

SINGLE WITH BUILT-IN DIODE

Power Dissipation-Max :

2.2W Ta

JESD-30 Code :

R-PBGA-B30

Drive Voltage (Max Rds On,Min Rds On) :

2.5V 4.5V

Vgs (Max) :

±12V

Terminal Form :

Ball

Drain to Source Voltage (Vdss) :

20V

Pulsed Drain Current-Max (IDM) :

60A

FET Type :

P-Channel

Series :

PowerTrench®

Pin Count :

30

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

DS Breakdown Voltage-Min :

20V

Qualification Status :

COMMERCIAL

Drain Current-Max (Abs) (ID) :

13A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
