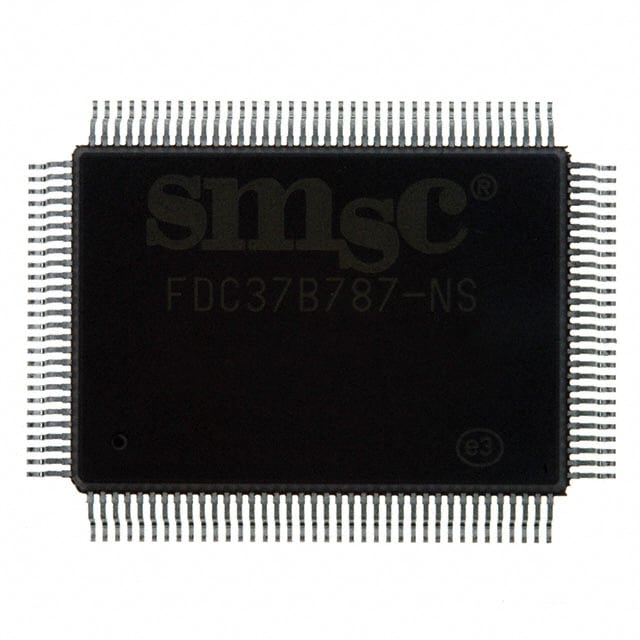

FDC37B787-NS

Manufacturer :

Microchip Technology

Product Category :

Specialized

Terminal Finish :

Matte Tin (Sn)

Max Operating Temperature :

70°C

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Product :

I/O Controllers

Product Category :

I/O Controller Interface IC

Product Type :

I/O Controller Interface IC

Supplier Device Package :

128-QFP (14x20)

Bus Compatibility :

ISA; PCI; IBM PC-XT; IBM PC-AT

Length :

20 mm

Published :

2007

Supply Current-Max :

90 mA

Number of Ports :

1 IrDA, 1 Parallel

Minimum Operating Temperature :

0 C

RoHS Status :

ROHS3 Compliant

Number of I/O :

9

Series :

--

Power Supplies :

5V

Supply Voltage :

5V

Maximum Operating Temperature :

+ 70 C

Data Bus Width :

8B

Manufacturer :

Microchip

Terminal Pitch :

0.5mm

Nominal Supply Current :

90mA

Address Bus Width :

16

RoHS :

Details

Number of Terminations :

128

Mounting Type :

Surface Mount

Radiation Hardening :

No

External Data Bus Width :

8

Height :

3.05 mm

JESD-609 Code :

e3

Lead Free :

Lead Free

Terminal Position :

QUAD

Package :

Tray

Voltage - Supply :

4.5V~5.5V

Technology :

CMOS

Number of Pins :

128

Additional Feature :

GAME PORT

Package / Case :

128-BQFP

Number of I/Os :

9 I/O

Package Type :

PQFP

Factory Lead Time :

6 Weeks

Number of I/O Lines :

28

Surface Mount :

yes

Mounting Style :

SMD/SMT

Reach Compliance Code :

Compliant

Rad Hardened :

No

Temperature Grade :

COMMERCIAL

Pin Count :

128

Min Operating Temperature :

0°C

Peak Reflow Temperature (Cel) :

260

Package Shape :

RECTANGULAR

Packaging :

Tray

Applications :

--

Terminal Form :

Gull wing

Programmable :

yes

JESD-30 Code :

R-PQFP-G128

Number of Timers/Counters :

2

Seated Height-Max :

3.4 mm

Watchdog Timer :

yes

Interface :

ISA Host

Operating Supply Current :

90 mA

Mount :

Surface Mount

Number of Terminals :

128

Base Part Number :

FDC37B787

Width :

14 mm

Product Status :

Obsolete

Boundary Scan :

No

Base Product Number :

FDC37B787

Qualification Status :

Not Qualified

Brand :

Microchip Technology
