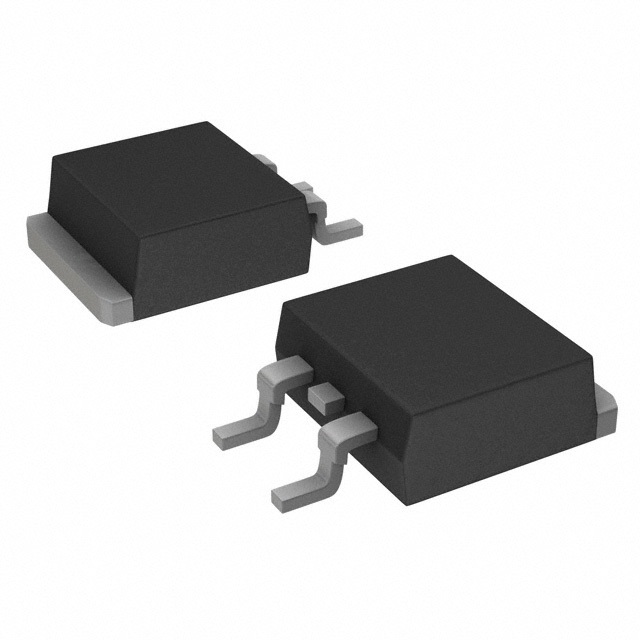

FDB9403

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Arrays

Terminal Finish :

Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Factory Lead Time :

12 Weeks

RoHS Status :

ROHS3 Compliant

Vgs(th) (Max) @ Id :

3V @ 250µA

FET Type :

N-Channel

Package / Case :

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Weight :

1.31247g

Packaging :

Tape and Reel (TR)

Current - Continuous Drain (Id) @ 25°C :

110A Tc

Input Capacitance (Ciss) (Max) @ Vds :

13500pF @ 20V

Vgs (Max) :

±20V

Rds On (Max) @ Id, Vgs :

1.2m Ω @ 80A, 10V

Element Configuration :

Single

Mount :

Surface Mount

Peak Reflow Temperature (Cel) :

260

Continuous Drain Current (ID) :

110A

Series :

Automotive, AEC-Q101, PowerTrench®

Gate Charge (Qg) (Max) @ Vgs :

245nC @ 10V

Pbfree Code :

yes

Drive Voltage (Max Rds On,Min Rds On) :

10V

Mounting Type :

Surface Mount

Power Dissipation-Max :

333W Tj

Operating Temperature :

-55°C~175°C TJ

JESD-609 Code :

e3

Drain to Source Voltage (Vdss) :

40V

Reach Compliance Code :

not_compliant
