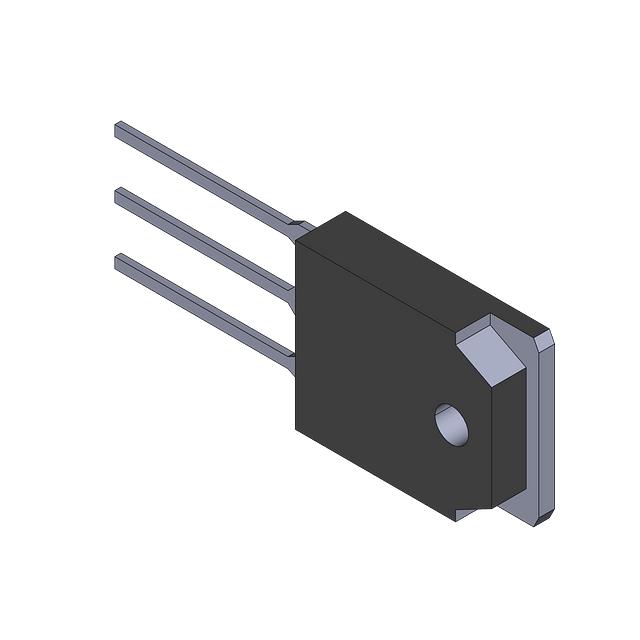

FDA50N50

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Single

Continuous Drain Current (ID) :

48A

Height :

19.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Current - Continuous Drain (Id) @ 25°C :

48A Tc

Published :

2013

Mount :

Through Hole

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Package / Case :

TO-3P-3, SC-65-3

Element Configuration :

Single

Drive Voltage (Max Rds On,Min Rds On) :

10V

Vgs (Max) :

±20V

Current Rating :

48A

Operating Mode :

ENHANCEMENT MODE

Weight :

6.401g

Threshold Voltage :

5V

Number of Pins :

3

Gate Charge (Qg) (Max) @ Vgs :

137nC @ 10V

REACH SVHC :

No SVHC

Packaging :

Tube

Vgs(th) (Max) @ Id :

5V @ 250μA

Number of Terminations :

3

Transistor Element Material :

SILICON

Length :

15.6mm

Fall Time (Typ) :

230 ns

Pbfree Code :

yes

Number of Elements :

1

FET Type :

N-Channel

Power Dissipation-Max :

625W Tc

Mounting Type :

Through Hole

Gate to Source Voltage (Vgs) :

20V

Radiation Hardening :

No

JESD-609 Code :

e3

Power Dissipation :

625W

Width :

4.8mm

Voltage - Rated DC :

500V

Series :

UniFET™

Input Capacitance (Ciss) (Max) @ Vds :

6460pF @ 25V

Drain to Source Breakdown Voltage :

500V

ECCN Code :

EAR99

Lead Free :

Lead Free

Rise Time :

360ns

Rds On (Max) @ Id, Vgs :

105m Ω @ 24A, 10V

Terminal Finish :

Tin (Sn)

Turn-Off Delay Time :

225 ns

Transistor Application :

SWITCHING

Operating Temperature :

-55°C~150°C TJ

Factory Lead Time :

17 Weeks

Turn On Delay Time :

105 ns
