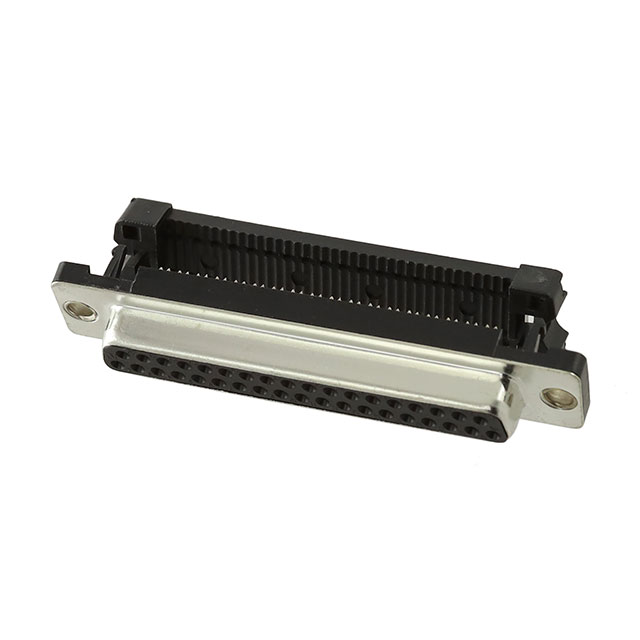

DC37-SF-M1
Or copy the link below:
- Mfr.Part #
- DC37-SF-M1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 37POS IDC
- Stock
- 39
- In Stock ：
- 39
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Mounting Option 2 :
- LOCKING
- Dielectric Withstanding Voltage :
- 1000VAC V
- Voltage - Rated :
- 250VAC
- Contact Pattern :
- STAGGERED
- Number of Rows :
- 2
- Wire Gauge :
- 28-30 AWG
- Shell Finish :
- Tin
- Number of Positions :
- 37
- Contact Style :
- RND PIN-SKT
- Shell Size, Connector Layout :
- 4 DC C
- Connector Style :
- D-Sub
- Contact Finish Thickness :
- Flash
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- 5A
- Contact Finish :
- Gold
- Color :
- Black
- Insulation Resistance :
- 1000000000Ohm
- Additional Feature :
- RoHS Compliant
- Factory Lead Time :
- 9 Weeks
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Material :
- Phosphor Bronze
- Series :
- DSF
- Connector Type :
- Receptacle, Female Sockets
- Body Breadth :
- 0.494 inch
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Operating Temperature :
- -65°C~125°C
- Reference Standard :
- UL, CSA
- Total Number of Contacts :
- 37
- Contact Design :
- PREASSEM CONN
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Termination :
- IDC, Ribbon Cable
- Flange Feature :
- Housing/Shell (Unthreaded)
- Mating Contact Pitch :
- 0.109 inch
- Datasheets
- DC37-SF-M1
DSF Series D-Sub Receptacle, Female Sockets 37-Position IDC, Ribbon Cable 4 DC C Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
DC37-SF-M1 Overview
Packaging is Receptacle, Female Sockets.This device has a Free Hanging (In-Line) mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the DSF Series.Other features include ROHS COMPLIANT, to name just a few.Devices operate at -65°C~125°C operating temperatures.
DC37-SF-M1 Features
DSF series
DC37-SF-M1 Applications
There are a lot of Adam Tech
DC37-SF-M1 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
