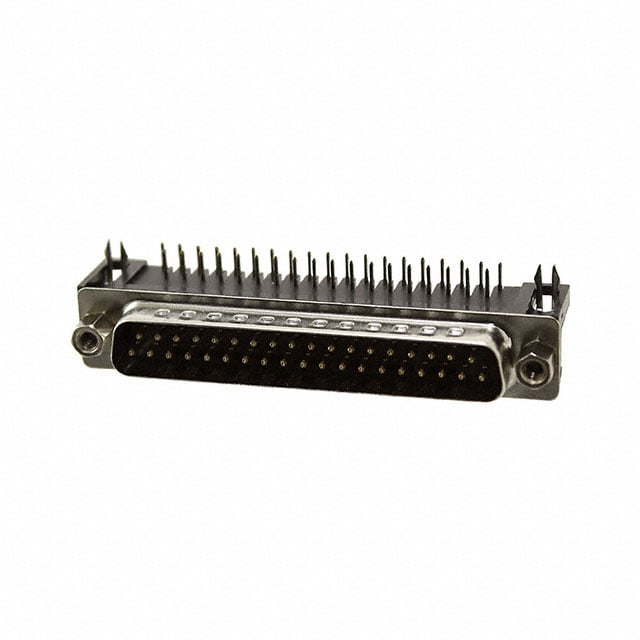

DC37-PL-25
Or copy the link below:
- Mfr.Part #
- DC37-PL-25
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS R/A SLDR
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Contact Pattern :
- STAGGERED
- Packaging :
- Tray
- Mating Contact Pitch :
- 0.109 inch
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Form :
- Stamped
- Material :
- Metal
- Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- Contact Style :
- RND PIN-SKT
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Mounting Option 2 :
- THREADED INSERT
- Series :
- DPL
- Body Depth :
- 0.488 inch
- Backset Spacing :
- 0.319 (8.10mm)
- Feature :
- Board Lock, Grounding Indents
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 37
- Body Breadth :
- 0.494 inch
- Shell Material, Finish :
- Steel
- Contact Finish Thickness :
- Flash
- Additional Feature :
- ROHS, W/REMOVABLE JACKSCREWS
- Number Of PCB Rows :
- 2
- Connector Type :
- Plug, Male Pins
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -40°C~105°C
- RoHS Status :
- ROHS3 Compliant
- Contact Finish :
- Gold
- Termination :
- Solder
- Shell Finish :
- Zinc
- Plating Thickness :
- 30μin
- Shell Size, Connector Layout :
- 4 DC C
- Total Number of Contacts :
- 37
- Connector Style :
- D-Sub
- Mounting Type :
- Through Hole, Right Angle
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Material :
- COPPER ALLOY
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Current Rating (Amps) :
- 1A
- Reference Standard :
- UL, CSA
- PCB Contact Pattern :
- STAGGERED
- Voltage - Rated :
- 250VAC
- Datasheets
- DC37-PL-25
DC37-PL-25 Documents
DPL Series D-Sub Plug, Male Pins 37-Position Solder 4 DC C Through Hole, Right Angle Copper Alloy Gold Steel
DC37-PL-25 Overview
Packaging is in the form of Plug, Male Pins.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the DPL Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS, W/REMOVABLE JACKSCREWS, to name a few.A number of features make the Board Lock, Grounding Indents feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
DC37-PL-25 Features
DPL series
DC37-PL-25 Applications
There are a lot of Adam Tech
DC37-PL-25 D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
