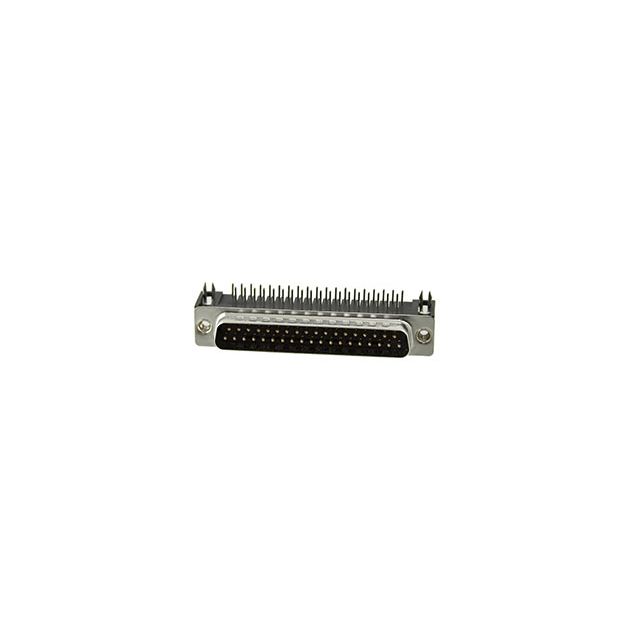

DC37-PL-24
- Mfr.Part #
- DC37-PL-24
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS R/A SLDR
- Stock
- 160
- In Stock :
- 160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Factory Lead Time :
- 9 Weeks
- Shell Finish :
- Tin
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Body Depth :
- 0.488 inch
- Filter Feature :
- No
- Mounting Type :
- Through Hole, Right Angle
- Reference Standard :
- UL, CSA
- Number of Positions :
- 37
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- Empty Shell :
- No
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~105°C
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Connector Style :
- D-Sub
- Contact Pattern :
- STAGGERED
- Mounting Option 2 :
- INSERT
- Termination :
- Solder
- Material :
- Metal
- Contact Style :
- RND PIN-SKT
- Feature :
- Board Lock, Grounding Indents
- Color :
- Black
- Lead Free :
- Lead Free
- MIL Conformance :
- No
- Contact Form :
- Stamped
- PCB Contact Pattern :
- STAGGERED
- Contact Material :
- COPPER ALLOY
- Mixed Contacts :
- No
- Mating Contact Pitch :
- 0.109 inch
- Backset Spacing :
- 0.319 (8.10mm)
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Additional Feature :
- RoHS Compliant
- Flange Feature :
- Housing/Shell (4-40)
- Shell Size, Connector Layout :
- 4 DC C
- Total Number of Contacts :
- 37
- Connector Type :
- Plug, Male Pins
- Voltage - Rated :
- 250VAC
- Body Breadth :
- 0.494 inch
- Packaging :
- Tray
- Shell Material, Finish :
- Steel, Tin Plated
- Number Of PCB Rows :
- 2
- Series :
- DPL
- Contact Finish Thickness :
- Flash
- Datasheets
- DC37-PL-24
DC37-PL-24 Documents

DPL Series D-Sub Plug, Male Pins 37-Position Solder 4 DC C Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
DC37-PL-24 Overview
The product comes in a package of Plug, Male Pins.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the DPL Series of products.Additionally, there are other features, such as ROHS COMPLIANT.A number of features make it more powerful because of its Board Lock, Grounding Indents feature.There is no operating temperature for the device.
DC37-PL-24 Features
DPL series
DC37-PL-24 Applications
There are a lot of Adam Tech
DC37-PL-24 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
