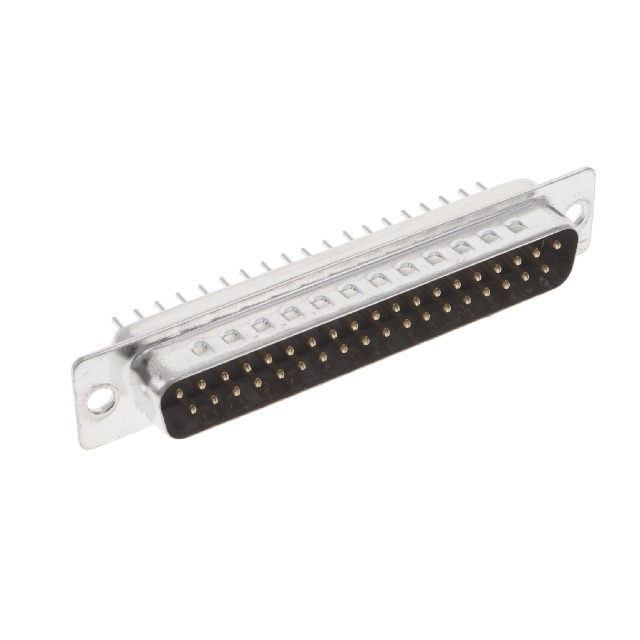

DC37-PT-1

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Contact Finish :

Gold

Contact Pattern :

STAGGERED

Reliability :

COMMERCIAL

Color :

Black

Connector Style :

D-Sub

Number of Positions :

37

Mounting Option 2 :

RIVET and JACKSCREW

Flange Feature :

Housing/Shell (Unthreaded)

Feature :

Grounding Indents

Termination :

Solder

Contact Material :

COPPER ALLOY

Gender :

Male

Factory Lead Time :

9 Weeks

Number of Rows :

2

Voltage - Rated :

250VAC

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Shell Material, Finish :

Steel, Tin Plated

Contact Finish Thickness :

Flash

Insulation Resistance :

5000000000Ohm

Body Breadth :

0.494 inch

Shell Finish :

Tin

PCB Contact Pattern :

STAGGERED

Connector Type :

Plug, Male Pins

Number Of PCB Rows :

2

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL, CSA

Operating Temperature :

-55°C~85°C

Shell Size, Connector Layout :

4 DC C

Series :

DPT

Packaging :

Tray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

RoHS Compliant

Mounting Option 1 :

#4-40

Mating Contact Pitch :

0.109 inch

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Dielectric Withstanding Voltage :

1000VAC V

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Length - Termination :

0.189 inch

Total Number of Contacts :

37

Current Rating (Amps) :

1A

Contact Style :

RND PIN-SKT
