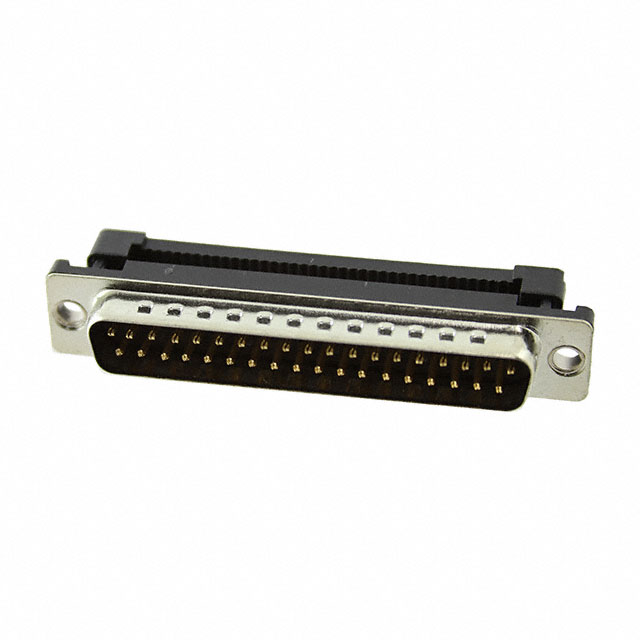

DC37-PF-M1
Or copy the link below:
- Mfr.Part #
- DC37-PF-M1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS IDC
- Stock
- 81
- In Stock ：
- 81
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 28-30 AWG
- Connector Style :
- D-Sub
- Shell Size, Connector Layout :
- 4 DC C
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~125°C
- Contact Style :
- RND PIN-SKT
- Voltage - Rated :
- 250VAC
- RoHS Status :
- ROHS3 Compliant
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 37
- Flange Feature :
- Housing/Shell (Unthreaded)
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish Thickness :
- Flash
- Shell Material, Finish :
- Steel, Tin Plated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Packaging :
- Tray
- Number of Rows :
- 2
- Factory Lead Time :
- 9 Weeks
- Feature :
- Grounding Indents
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Contact Design :
- PREASSEM CONN
- Connector Type :
- Plug, Male Pins
- Mounting Option 2 :
- LOCKING
- Contact Material :
- Phosphor Bronze
- Dielectric Withstanding Voltage :
- 1000VAC V
- Series :
- DPF
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- Color :
- Black
- Mating Contact Pitch :
- 0.109 inch
- Contact Pattern :
- STAGGERED
- Number of Positions :
- 37
- Reference Standard :
- UL, CSA
- Termination :
- IDC, Ribbon Cable
- Datasheets
- DC37-PF-M1
DC37-PF-M1 Documents
DPF Series D-Sub Plug, Male Pins 37-Position IDC, Ribbon Cable 4 DC C Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
DC37-PF-M1 Overview
The product is packaged in Plug, Male Pins.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the DPF Series, it can be found in this category.With its Grounding Indents feature, it is more powerful in many ways.The device is operating at -55°C~125°C Operating Temperature.
DC37-PF-M1 Features
DPF series
DC37-PF-M1 Applications
There are a lot of Adam Tech
DC37-PF-M1 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
