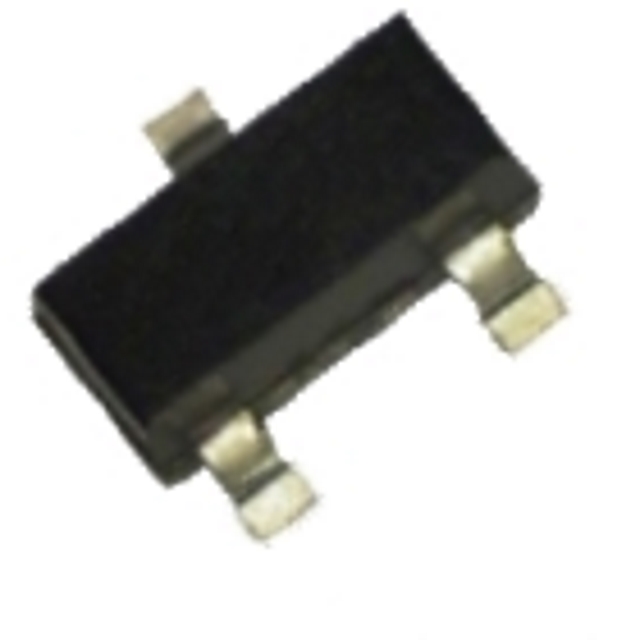

CMBT2907A-T

Manufacturer :

Rectron USA

Product Category :

Transistors - Bipolar (BJT) - Single

Supplier Device Package :

SOT-23

Voltage - Collector Emitter Breakdown (Max) :

60 V

Qualification Status :

Not Qualified

Continuous Collector Current :

0.6 A

Reach Compliance Code :

Compliant

Current - Collector Cutoff (Max) :

50nA

Mounting Type :

Surface Mount

Current - Collector (Ic) (Max) :

600 mA

Transistor Type :

PNP

Pbfree Code :

yes

Series :

-

Terminal Finish :

Matte Tin (Sn)

Operating Temperature :

150°C (TJ)

Peak Reflow Temperature (Cel) :

265

Packaging :

Reel

Mounting Style :

SMD/SMT

Number of Terminals :

3

Height :

1.15 mm

Configuration :

Single

Pin Count :

3

Collector-Emitter Voltage-Max :

60 V

Product Status :

Active

Product Type :

BJTs - Bipolar Transistors

Subcategory :

Transistors

Collector Current-Max (IC) :

0.6 A

Package :

Tape and Reel (TR)

Power - Max :

250 mW

DC Current Gain-Min (hFE) :

50

Package / Case :

TO-236-3, SC-59, SOT-23-3

JESD-609 Code :

e3

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 10mA, 10V

JESD-30 Code :

R-PDSO-G3

Technology :

Si

Product Category :

Bipolar Transistors - BJT

Width :

1.4 mm

Surface Mount :

yes

Manufacturer :

Rectron

Terminal Position :

Dual

Transistor Polarity :

PNP

RoHS :

Details

Vce Saturation (Max) @ Ib, Ic :

1.6V @ 50mA, 500mA

Frequency - Transition :

200MHz

Terminal Form :

Gull wing

Maximum Operating Temperature :

+ 150 C

Brand :

Rectron

HTS Code :

8541.21.00.75

Transistor Element Material :

SILICON

Length :

3 mm

Package Shape :

RECTANGULAR

ECCN Code :

EAR99

Number of Elements :

1

Polarity/Channel Type :

PNP
