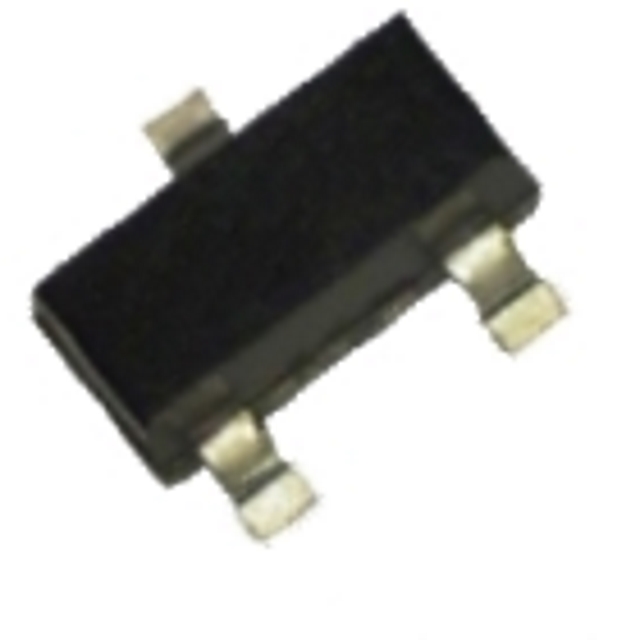

CMBT2222A-T

Manufacturer :

Rectron USA

Product Category :

Transistors - Bipolar (BJT) - Single

Product Status :

Active

Series :

-

Collector-Base Voltage :

75(V)

Product Category :

Bipolar Transistors - BJT

Current - Collector (Ic) (Max) :

600 mA

Operating Temperature :

150°C (TJ)

DC Current Gain-Min (hFE) :

40

Height :

1.15 mm

Maximum Operating Temperature :

+ 150 C

Emitter-Base Voltage :

6(V)

Frequency - Transition :

300MHz

Transistor Type :

NPN

Category :

Bipolar Small Signal

Manufacturer :

Rectron

Length :

3 mm

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 150mA, 10V

Operating Temp Range :

-55C to 150C

Supplier Device Package :

SOT-23

Pin Count :

3

Terminal Finish :

Matte Tin (Sn)

Subcategory :

Transistors

Packaging :

Reel

HTS Code :

8541.21.00.75

Transistor Element Material :

SILICON

Technology :

Si

JESD-609 Code :

e3

Vce Saturation (Max) @ Ib, Ic :

300mV @ 15mA, 150mA

Package Shape :

RECTANGULAR

RoHS :

Details

Mounting :

Surface Mount

Brand :

Rectron

Terminal Position :

Dual

Current - Collector Cutoff (Max) :

10nA

Surface Mount :

yes

Rad Hardened :

No

Collector-Emitter Voltage :

40(V)

Peak Reflow Temperature (Cel) :

265

Number of Terminals :

3

Product Type :

BJTs - Bipolar Transistors

Qualification Status :

Not Qualified

Collector Current-Max (IC) :

0.6 A

Package Type :

SOT-23

Transistor Polarity :

NPN

Voltage - Collector Emitter Breakdown (Max) :

40 V

Package :

Tape and Reel (TR)

Package / Case :

TO-236-3, SC-59, SOT-23-3

Polarity/Channel Type :

NPN

Pbfree Code :

yes

Reach Compliance Code :

Compliant

Terminal Form :

Gull wing

Frequency :

300(MHz)

Operating Temperature Classification :

Military

JESD-30 Code :

R-PDSO-G3

Collector Current (DC) :

0.6(A)

Configuration :

Single

DC Current Gain :

35

Width :

1.4 mm

Mounting Type :

Surface Mount

Collector-Emitter Voltage-Max :

40 V

Number of Elements :

1

Output Power :

Not Required(W)

Power - Max :

300 mW

Power Dissipation :

0.25(W)

Continuous Collector Current :

0.6 A

ECCN Code :

EAR99

Mounting Style :

SMD/SMT
