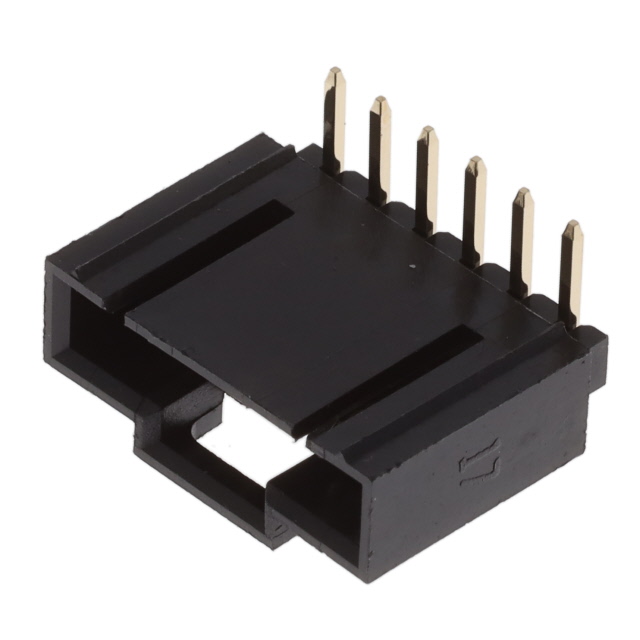

CDR-06-GR
Or copy the link below:
- Mfr.Part #
- CDR-06-GR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- HEADER RA TH GOLD 6POS .1" SINGL
- Stock
- 7,381
- In Stock ：
- 7,381
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Gold
- Package :
- Bag
- Contact Length - Post :
- 0.134 (3.40mm)
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 6
- Series :
- CDR
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- 3A
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- Flash
- Pitch - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- Applications :
- -
- Contact Material :
- Brass
- Mated Stacking Heights :
- -
- Insulation Height :
- 0.200 (5.08mm)
- Connector Type :
- Header
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Mating :
- Flash
- Operating Temperature :
- -40°C ~ 105°C
- Voltage Rating :
- 250VAC
- Contact Shape :
- Square
- Number of Rows :
- 1
- Termination :
- Solder
- Ingress Protection :
- -
- Overall Contact Length :
- -
- Row Spacing - Mating :
- -
- Features :
- -
- Contact Length - Mating :
- -
- Mounting Type :
- Through Hole, Right Angle
- Product Status :
- Active
- Base Product Number :
- CDR
- Datasheets
- CDR-06-GR
CDR-06-GR Documents
CDR Series 1-Row Header Solder Brass Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled 6-Position Board to Cable/Wire 0.200 (5.08mm) Height
CDR-06-GR Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A product of the CDR Series, it belongs to the range of products of that series.This device may be used for the purpose of -.-40°C ~ 105°C Operating Temperature is the default operating temperature for the device.
CDR-06-GR Features
CDR series
CDR-06-GR Applications
There are a lot of Adam Tech
CDR-06-GR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
