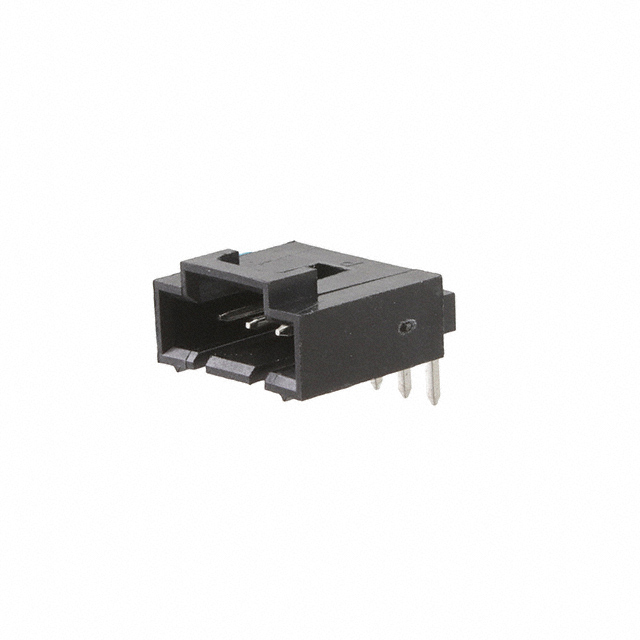

CDR-04-TR
Or copy the link below:
- Mfr.Part #
- CDR-04-TR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 2.54MM
- Stock
- 401
- In Stock ：
- 401
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Body Breadth :
- 0.266 inch
- RoHS Status :
- ROHS3 Compliant
- Reference Standard :
- UL, CSA
- Number of Positions Loaded :
- All
- Polarization Key :
- POLARIZED HOUSING
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 250VAC
- Fastening Type :
- Latch Holder
- Body Length or Diameter :
- 0.5 inch
- Mounting Option 1 :
- LOCKING
- Insulation Height :
- 0.200 5.08mm
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- Number of Rows :
- 1
- Dielectric Withstanding Voltage :
- 500VAC V
- Connector Type :
- Header
- Shrouding :
- Unshrouded
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Number of Positions :
- 4
- Pitch - Mating :
- 0.100 2.54mm
- Total Number of Contacts :
- 4
- Contact Shape :
- Square
- Operating Temperature :
- -40°C~105°C
- Style :
- Board to Cable/Wire
- Insulation Color :
- Black
- Current Rating (Amps) :
- 3A
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Feature :
- Polarizing Key
- Reliability :
- COMMERCIAL
- Series :
- CDR
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Number Of PCB Rows :
- 1
- Datasheets
- CDR-04-TR
CDR-04-TR Documents
CDR Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Cable/Wire 0.200 5.08mm Height
CDR-04-TR Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the CDR Series.It is more powerful in many ways due to its Polarizing Key feature.It operates at an operating temperature of -40°C~105°C.
CDR-04-TR Features
CDR series
CDR-04-TR Applications
There are a lot of Adam Tech
CDR-04-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
