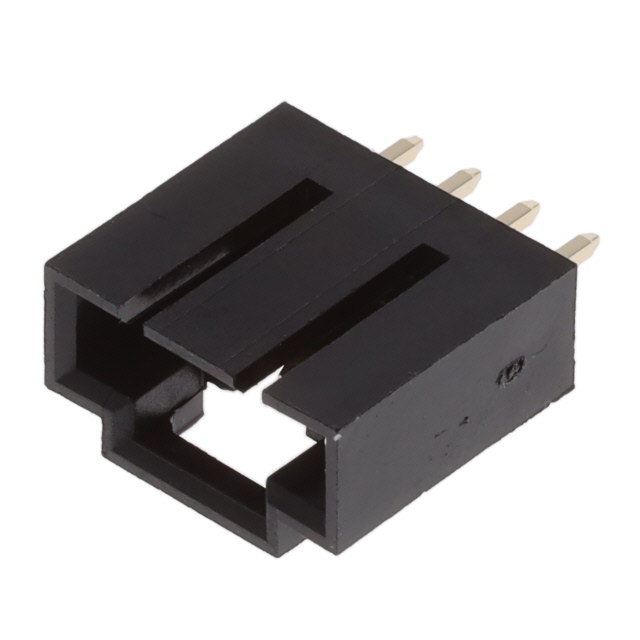

CDR-04-GS
Or copy the link below:
- Mfr.Part #
- CDR-04-GS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- HEADER VERT TH GOLD 4POS .1" SIN
- Stock
- 34,475
- In Stock ：
- 34,475
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Terminal Length :
- 0.132 inch
- Insulator Color :
- Black
- Fastening Type :
- Latch Holder
- Number of Positions Loaded :
- All
- Package :
- Bag
- Number of Positions :
- 4
- Subcategory :
- Headers and Edge Type Connectors
- Insulation Color :
- Black
- Mounting Style :
- Straight
- Contact Shape :
- Square
- Product Status :
- Active
- Manufacturer :
- Adam Technologies Inc
- Mated Stacking Heights :
- -
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Pitch - Mating :
- 0.100 (2.54mm)
- Plating Thickness :
- FLASH inch
- Total Number of Contacts :
- 4
- Current Rating (Amps) :
- 3A
- Overall Contact Length :
- 0.492 (12.50mm)
- Operating Temperature :
- -40°C ~ 105°C
- Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 1
- Contact Length - Post :
- 0.132 (3.35mm)
- Terminal Pitch :
- 2.54 mm
- Rated Current (Power) :
- 17.5A
- Reference Standard :
- UL
- Contact Finish Termination :
- Gold Over Nickel
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Mating :
- -
- Rated Voltage :
- 300V
- Termination Type :
- Solder
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- Flash
- Body Depth :
- 0.467 inch
- Number Of PCB Rows :
- 1
- Features :
- -
- Body Breadth :
- 0.266 inch
- Base Product Number :
- CDR
- Insulation Height :
- 0.453 (11.50mm)
- Contact Finish Thickness - Mating :
- Flash
- Applications :
- -
- Row Spacing - Mating :
- -
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Solder
- Ingress Protection :
- -
- Mounting Option 1 :
- LOCKING
- Insulation Resistance :
- 1000000000 Ω
- Reliability :
- COMMERCIAL
- Contact Material :
- Brass
- Voltage Rating :
- 250VAC
- Contact Finish - Post :
- Gold
- Contact Finish - Mating :
- Gold
- Contact Style :
- SQ PIN-SKT
- Contact Resistance :
- 30 mΩ
- Mating Contact Pitch :
- 0.1 inch
- Connector Type :
- PCB Terminal Blocks with Wire
- Reach Compliance Code :
- Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Rated Current (Signal) :
- 3 A
- Dielectric Withstanding Voltage :
- 500VAC V
- Series :
- CDR
- Number of Poles :
- 17
- PCB Contact Pattern :
- RECTANGULAR
- Datasheets
- CDR-04-GS
CDR-04-GS Documents
CDR Series 1-Row PCB Terminal Blocks with Wire Solder Brass Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Cable/Wire 0.453 (11.50mm) Height
CDR-04-GS Overview
Currently, it is packaged in PCB Terminal Blocks with Wire.The mounting type of the device is Through Hole.A product of the CDR Series, it belongs to the range of products of that series.This device may be used for the purpose of -.-40°C ~ 105°C Operating Temperature is the default operating temperature for the device.
CDR-04-GS Features
CDR series
CDR-04-GS Applications
There are a lot of Adam Tech
CDR-04-GS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
