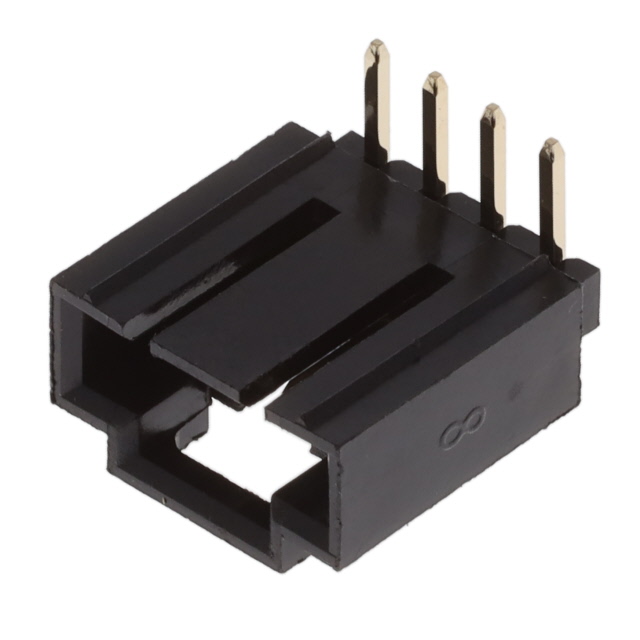

CDR-04-GR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Features :

-

Terminal Pitch :

2.54 mm

Mounting Type :

BOARD

Applications :

-

Insulation Height :

0.200 (5.08mm)

Dielectric Withstanding Voltage :

500VAC V

Row Spacing - Mating :

-

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions :

4

Body Breadth :

0.266 inch

Series :

CDR

Total Number of Contacts :

4

Operating Temperature :

-40°C ~ 105°C

Insulation Color :

Black

Base Product Number :

CDR

Connector Type :

BOARD CONNECTOR

Contact Shape :

Square

Current Rating (Amps) :

3A

PCB Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Contact Gender :

Male

Number of Positions Loaded :

All

Fastening Type :

Latch Holder

Product Status :

Active

Number of Rows :

1

Termination Type :

Solder

Style :

Board to Cable/Wire

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Ingress Protection :

-

Pitch - Mating :

0.100 (2.54mm)

Termination :

Solder

Insulation Resistance :

1000000000 Ω

Contact Length - Mating :

-

Contact Finish Thickness - Post :

Flash

Contact Type :

Male Pin

Contact Style :

SQ PIN-SKT

Reliability :

COMMERCIAL

Reference Standard :

UL, CSA

Mated Stacking Heights :

-

Reach Compliance Code :

Compliant

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Gold

Contact Pattern :

RECTANGULAR

Plating Thickness :

FLASH inch

Voltage Rating :

250VAC

Mounting Style :

RIGHT ANGLE

Contact Resistance :

30 mΩ

Insulator Color :

Black

Package :

Bag

Overall Contact Length :

-

Contact Material :

Phosphor Bronze

Contact Finish Thickness - Mating :

Flash

Number Of PCB Rows :

1

Terminal Length :

0.134 inch

Contact Length - Post :

0.134 (3.40mm)

Rated Current (Signal) :

3 A

Mating Contact Pitch :

0.1 inch

Contact Finish - Post :

Gold
