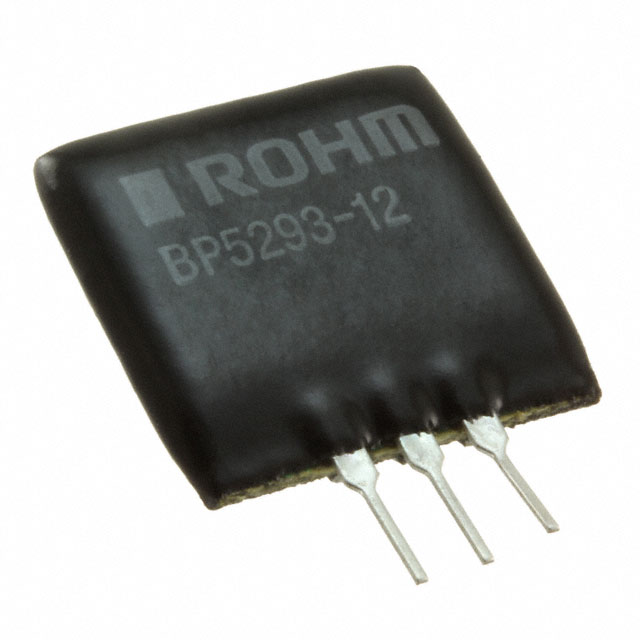

BP5293-12

Manufacturer :

ROHM Semiconductor

Product Category :

Height :

17.78mm

Series :

BP5293

Terminal Pitch :

2.54mm

Packaging :

Tray

Max Output Current :

1A

Feature :

OCP, OVP, UVLO

Operating Temperature :

-25°C~85°C

RoHS Status :

ROHS3 Compliant

Input Voltage-Nom :

20V

Package / Case :

3-SIP Module

Published :

2015

Number of Outputs :

1

Voltage - Output 1 :

12V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Width :

7.2mm

Voltage - Input (Min) :

17V

Qualification Status :

Not Qualified

Type :

Non-Isolated PoL Module

Mount :

Through Hole

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Switcher Configuration :

Buck

Factory Lead Time :

10 Weeks

Voltage - Input (Max) :

26V

JESD-30 Code :

R-PSIP-T3

Applications :

ITE (Commercial)

Efficiency :

90%

Terminal Position :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Switching Frequency-Max :

570kHz

Size / Dimension :

0.67Lx0.22W x 0.70 H 17.0mmx5.7mmx17.8mm

Number of Functions :

1

Output Voltage :

12V

Control Mode :

CURRENT-MODE

Mounting Type :

Through Hole

Control Technique :

PULSE WIDTH MODULATION

Number of Terminations :

3
