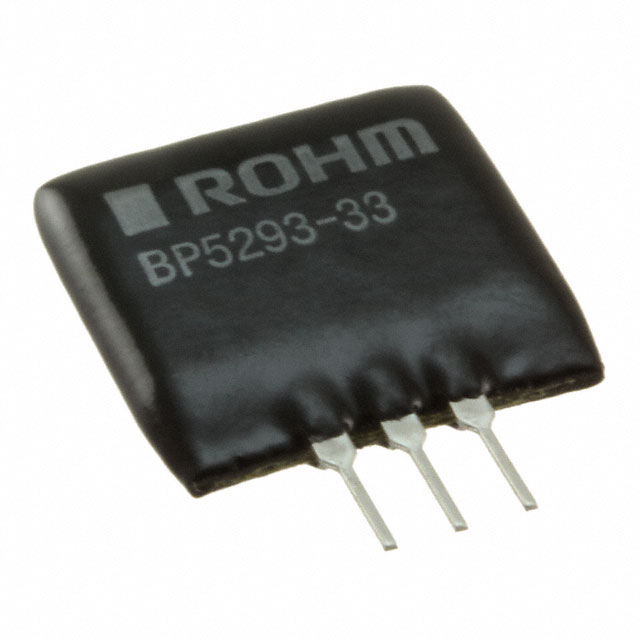

BP5293-33

Manufacturer :

ROHM Semiconductor

Product Category :

Max Output Current :

1A

Switching Frequency-Max :

570kHz

Number of Functions :

1

ECCN Code :

EAR99

Voltage - Input (Max) :

26V

Applications :

ITE (Commercial)

Width :

7.2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Input Voltage-Nom :

12V

Mounting Type :

Through Hole

Type :

Non-Isolated PoL Module

Number of Terminations :

3

Terminal Pitch :

2.54mm

Switcher Configuration :

Buck

RoHS Status :

ROHS3 Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Temperature :

-25°C~85°C

Published :

2015

Voltage - Input (Min) :

7V

Control Mode :

CURRENT-MODE

Number of Outputs :

1

Qualification Status :

Not Qualified

Size / Dimension :

0.67Lx0.22W x 0.70 H 17.0mmx5.7mmx17.8mm

Terminal Position :

Single

Mount :

Through Hole

Output Voltage :

3.3V

Control Technique :

PULSE WIDTH MODULATION

JESD-30 Code :

R-PSIP-T3

Factory Lead Time :

16 Weeks

Feature :

OCP, OVP, UVLO

Package / Case :

3-SIP Module

Series :

BP5293

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Packaging :

Tray

Voltage - Output 1 :

3.3V

Height :

17.78mm

Efficiency :

90%
