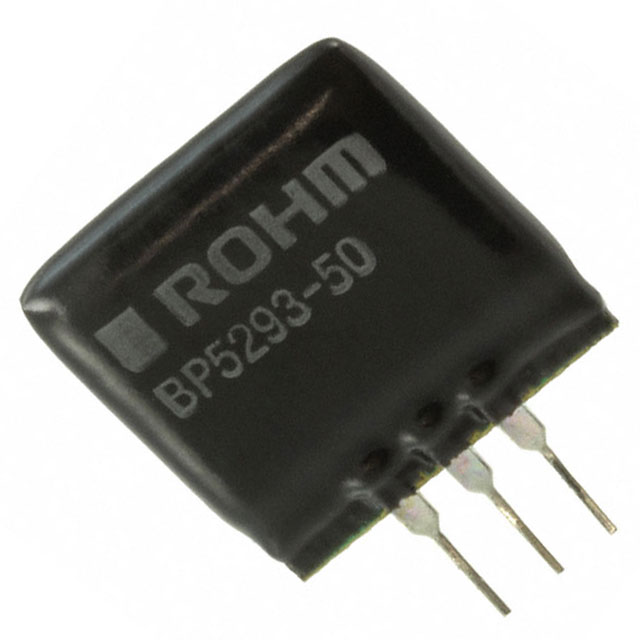

BP5293-50

Manufacturer :

ROHM Semiconductor

Product Category :

Switching Frequency-Max :

570kHz

Output Voltage :

5V

Factory Lead Time :

10 Weeks

Height :

17.78mm

JESD-30 Code :

R-PSIP-T3

Voltage - Output 1 :

5V

Package / Case :

3-SIP Module

Series :

BP5293

ECCN Code :

EAR99

Qualification Status :

Not Qualified

Published :

2015

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Efficiency :

90%

Switcher Configuration :

Buck

Input Voltage-Nom :

12V

Control Mode :

CURRENT-MODE

Number of Functions :

1

Mount :

Through Hole

Number of Outputs :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Input (Max) :

26V

Applications :

ITE (Commercial)

Feature :

OCP, OVP, UVLO

Max Output Current :

1A

Voltage - Input (Min) :

7V

Packaging :

Tray

Number of Terminations :

3

Mounting Type :

Through Hole

Size / Dimension :

0.67Lx0.22W x 0.70 H 17.0mmx5.7mmx17.8mm

Terminal Position :

Single

Terminal Pitch :

2.54mm

Lead Free :

Lead Free

Type :

Non-Isolated PoL Module

Width :

7.2mm

RoHS Status :

ROHS3 Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Control Technique :

PULSE WIDTH MODULATION

Operating Temperature :

-25°C~85°C
