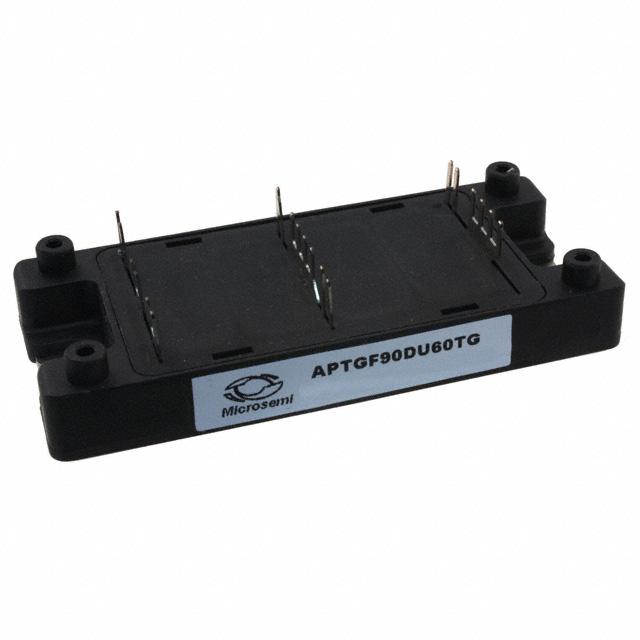

APTGF90DU60TG

Share

Or copy the link below:

Mfr.Part #
APTGF90DU60TG
Manufacturer
Microsemi
Package / Case
SP4
Datasheet
Download
Description
IGBT MODULE 600V 110A 416W SP4
Stock
48,962
In Stock :
48,962

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Microsemi
Product Category :
Transistors - IGBTs - Modules
Element Configuration :
Dual
ECCN Code :
EAR99
Peak Reflow Temperature (Cel) :
NOT SPECIFIED
JESD-609 Code :
e1
Terminal Finish :
TIN SILVER COPPER
Terminal Form :
UNSPECIFIED
Max Operating Temperature :
150°C
Min Operating Temperature :
-40°C
Transistor Application :
POWER CONTROL
Input :
Standard
Time@Peak Reflow Temperature-Max (s) :
NOT SPECIFIED
Vce(on) (Max) @ Vge, Ic :
2.5V @ 15V, 90A
JESD-30 Code :
R-XUFM-X12
Qualification Status :
Not Qualified
Polarity/Channel Type :
N-Channel
Input Capacitance (Cies) @ Vce :
4.3nF @ 25V
Published :
2006
Max Collector Current :
110A
RoHS Status :
RoHS Compliant
Max Power Dissipation :
416W
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Terminations :
12
Turn Off Time-Nom (toff) :
210 ns
Current - Collector Cutoff (Max) :
250μA
Number of Pins :
20
Case Connection :
Isolated
Pbfree Code :
yes
Input Capacitance :
4.3nF
Collector Emitter Voltage (VCEO) :
600V
NTC Thermistor :
yes
IGBT Type :
NPT
Turn On Time :
51 ns
Configuration :
Dual, Common Source
Mounting Type :
Chassis Mount
VCEsat-Max :
2.5 V
Package / Case :
SP4
Pin Count :
12
Mount :
Chassis Mount, Screw
Number of Elements :
2
Terminal Position :
UPPER
Collector Emitter Breakdown Voltage :
600V
Introducing Transistors - IGBTs - Modules Microsemi APTGF90DU60TG from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:12, Number of Pins:20, Mounting Type:Chassis Mount, Package / Case:SP4, APTGF90DU60TG pinout, APTGF90DU60TG datasheet PDF, APTGF90DU60TG amp .Beyond Transistors - IGBTs - Modules Microsemi APTGF90DU60TG ,we also offer FS450R12KE3BOSA1, VS-GT80DA120U, FD450R12KE4PHOSA1, Our vast inventory has you covered. Contact us now for immediate solutions.

Microsemi APTGF90DU60TG


APTGF90DU60TG datasheet pdf and Transistors - IGBTs - Modules product details from Microsemi Corporation stock available at
