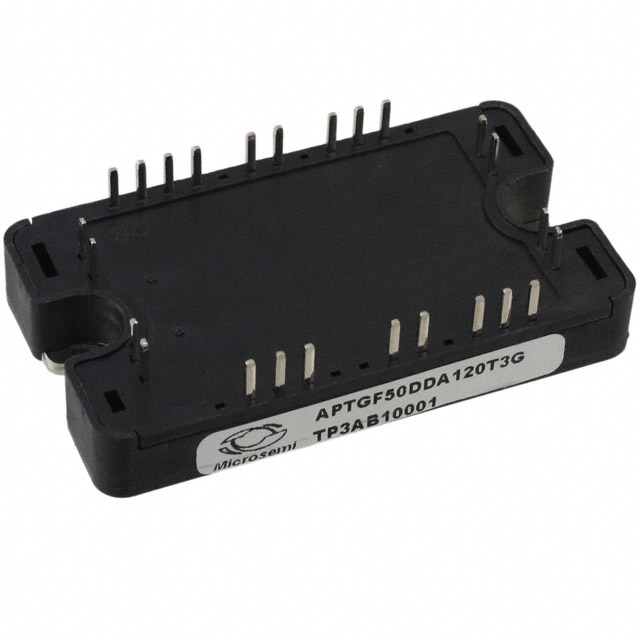

APTGF50DDA120T3G

Manufacturer :

Microsemi

Product Category :

Transistors - IGBTs - Modules

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Gate-Emitter Voltage-Max :

20V

Case Connection :

Isolated

Mount :

Chassis Mount, Screw

Number of Elements :

2

JESD-30 Code :

R-XUFM-X11

Max Power Dissipation :

312W

ECCN Code :

EAR99

VCEsat-Max :

3.7 V

Max Operating Temperature :

150°C

Current - Collector Cutoff (Max) :

250μA

IGBT Type :

NPT

Collector Emitter Breakdown Voltage :

1.2kV

Package / Case :

SP3

Vce(on) (Max) @ Vge, Ic :

3.7V @ 15V, 50A

Number of Terminations :

11

Turn Off Time-Nom (toff) :

400 ns

Max Collector Current :

70A

Min Operating Temperature :

-40°C

Input :

Standard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Dual Boost Chopper

Turn On Time :

100 ns

NTC Thermistor :

yes

Mounting Type :

Chassis Mount

Polarity/Channel Type :

N-Channel

Collector Emitter Voltage (VCEO) :

1.2kV

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Pin Count :

25

Input Capacitance (Cies) @ Vce :

3.45nF @ 25V

Terminal Position :

UPPER

Voltage - Collector Emitter Breakdown (Max) :

1200V

Transistor Application :

POWER CONTROL

Element Configuration :

Dual

Qualification Status :

Not Qualified

Number of Pins :

16

Input Capacitance :

3.45nF

Terminal Form :

UNSPECIFIED
