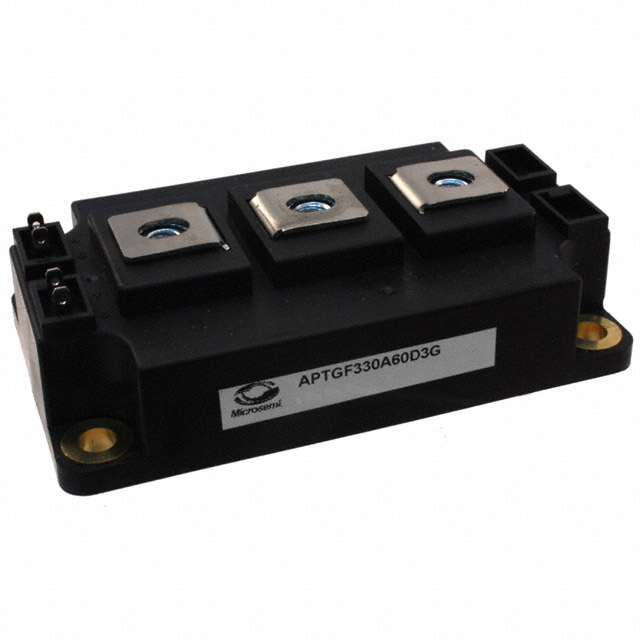

APTGF330A60D3G

Manufacturer :

Microsemi

Product Category :

Transistors - IGBTs - Modules

NTC Thermistor :

No

Mount :

Chassis Mount, Screw

Configuration :

Half Bridge

Mounting Type :

Chassis Mount

Max Collector Current :

520A

JESD-30 Code :

R-XUFM-X7

Terminal Finish :

TIN SILVER COPPER

Number of Terminations :

7

Pin Count :

7

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Collector Cutoff (Max) :

500μA

Number of Elements :

2

JESD-609 Code :

e1

Power - Max :

1560W

Gate-Emitter Voltage-Max :

20V

Transistor Application :

POWER CONTROL

Pbfree Code :

yes

Case Connection :

Isolated

Min Operating Temperature :

-40°C

ECCN Code :

EAR99

Collector Emitter Breakdown Voltage :

600V

Input Capacitance (Cies) @ Vce :

18nF @ 25V

IGBT Type :

NPT

RoHS Status :

RoHS Compliant

Vce(on) (Max) @ Vge, Ic :

2.45V @ 15V, 400A

Element Configuration :

Dual

Terminal Position :

UPPER

Input :

Standard

Max Operating Temperature :

150°C

Turn On Time :

230 ns

Published :

2012

Polarity/Channel Type :

N-Channel

Collector Emitter Voltage (VCEO) :

600V

Number of Pins :

5

Terminal Form :

UNSPECIFIED

Turn Off Time-Nom (toff) :

325 ns

Package / Case :

D-3 Module

Input Capacitance :

18nF

Max Power Dissipation :

1.56kW
