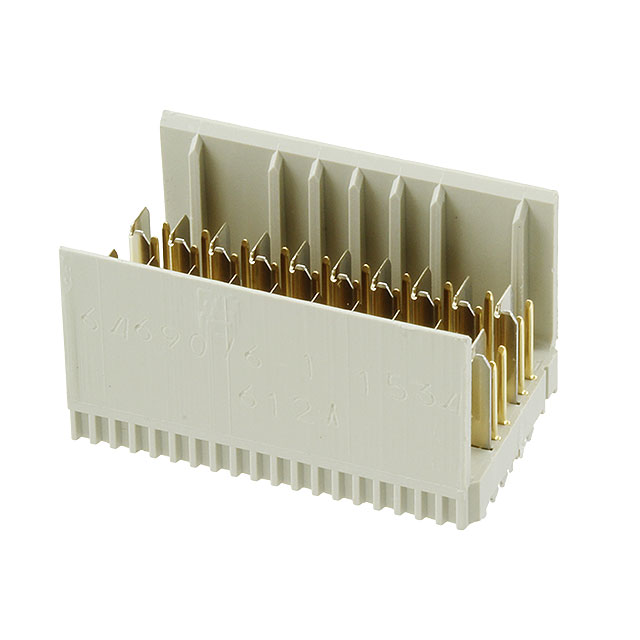

6469076-1
Or copy the link below:
- Mfr.Part #
- 6469076-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER HIGH SPEED 60POS PCB
- Stock
- 16,032
- In Stock ：
- 16,032
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Series :
- Z-Pack HM-ZD
- Number of Positions Loaded :
- All
- Max Current Rating :
- 700mA
- Connector Style :
- High Speed
- Current Rating (Amps) :
- 0.700A
- Plating Thickness :
- 760 nm
- Number of Columns :
- 10
- DIN Conformance :
- No
- IEC Conformance :
- No
- Current Rating :
- 700mA
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Layout, Typical :
- 40 Signal, 20 Ground
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Length :
- 24.9mm
- Published :
- 2009
- Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Shielding :
- Shielded
- Connector Usage :
- Backplane
- Factory Lead Time :
- 8 Weeks
- Housing Color :
- Grey
- Operating Supply Voltage :
- 250V
- MIL Conformance :
- No
- Housing Material :
- Polyester
- Operating Temperature :
- -65°C~105°C
- Make First / Break Last :
- No
- Number of Rows :
- 4
- Contact Material :
- Bronze
- Number of Pairs :
- 20
- Number of Positions :
- 60
- Connector Type :
- Header, Male Pins and Blades
- PCB Mounting Orientation :
- Vertical
- Packaging :
- Tube
- Depth :
- 15.43mm
- Option :
- GENERAL PURPOSE
- Termination :
- Press-Fit
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Contacts :
- 40
- ELV :
- Compliant
- Pitch :
- 0.098 2.50mm
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Lead Free :
- Not Applicable
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Datasheets
- 6469076-1
Z-PACK HM-Zd Series Header, Male Pins and Blades Press-Fit Gold 30.0μin 0.76μm 60 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Through Hole
6469076-1 Overview
It comes in Header, Male Pins and Blades packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the Z-PACK HM-Zd Series of products.The part is mounted by Through Hole.The device runs in -65°C~105°C Operating Temperature.With a supply voltage of 250V, this Backplane Connector works.
6469076-1 Features
Z-PACK HM-Zd series
6469076-1 Applications
There are a lot of TE Connectivity AMP Connectors
6469076-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
