6469048-1
Or copy the link below:
- Mfr.Part #
- 6469048-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR HI SPEED 120POS EDGE MT
- Stock
- 8,988
- In Stock ：
- 8,988
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Row Spacing :
- 1.5 mm
- Circuit Application :
- Signal
- Number of Pairs :
- 40
- DIN Conformance :
- No
- Body/Shell Style :
- Receptacle
- Polarization Key :
- POLARIZED HOUSING
- Housing Color :
- Grey
- Operating Temperature :
- -65°C~105°C
- Packaging :
- Tube
- Reliability :
- COMMERCIAL
- Length :
- 24.9mm
- Number Of PCB Rows :
- 12
- Orientation :
- RIGHT ANGLE
- Max Voltage Rating (AC) :
- 250V
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Pattern :
- RECTANGULAR
- Lead Free :
- Lead Free
- Connector Usage :
- Daughtercard
- Factory Lead Time :
- 5 Weeks
- REACH SVHC :
- Unknown
- Number of Columns :
- 10
- Shielding :
- Shielded
- Number of Pins :
- 80
- Withdrawl Force-Min :
- .139 N
- PCB Mounting Orientation :
- RIGHT ANGLE
- Gender :
- Male
- Option :
- GENERAL PURPOSE
- Connector Style :
- High Speed
- Number of Conductors :
- ONE
- Number of Positions :
- 120
- Plating Thickness :
- 760 nm
- Mount :
- Edge, Press Fit, Through Hole
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Operating Supply Voltage :
- 250V
- Housing Material :
- Polyester
- Contact Material :
- Bronze
- Contact Finish :
- Gold
- ELV :
- Compliant
- Contact Style :
- SQ PIN-SKT
- ECCN Code :
- EAR99
- Filter Feature :
- No
- Published :
- 2005
- Dielectric Withstanding Voltage :
- 650VAC V
- Flammability Rating :
- UL94 V-0
- Series :
- Z-Pack HM-ZD
- Contact Layout, Typical :
- 80 Single Signal, 40 Ground
- Contact Resistance :
- 50mOhm
- Depth :
- 35.55mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Body Breadth :
- 0.919 inch
- Make First / Break Last :
- No
- Current Rating :
- 700mA
- Durability :
- 250 Cycles
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Contact Pattern :
- RECTANGULAR
- Total Number of Contacts :
- 80
- Pitch :
- 0.098 2.50mm
- Connector Type :
- Header, Male Pins and Blades
- IEC Conformance :
- No
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Reference Standard :
- UL
- Number of Rows :
- 8
- Current Rating (Amps) :
- 0.700A
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Termination :
- Press-Fit
- Max Current Rating :
- 700mA
- Datasheets
- 6469048-1

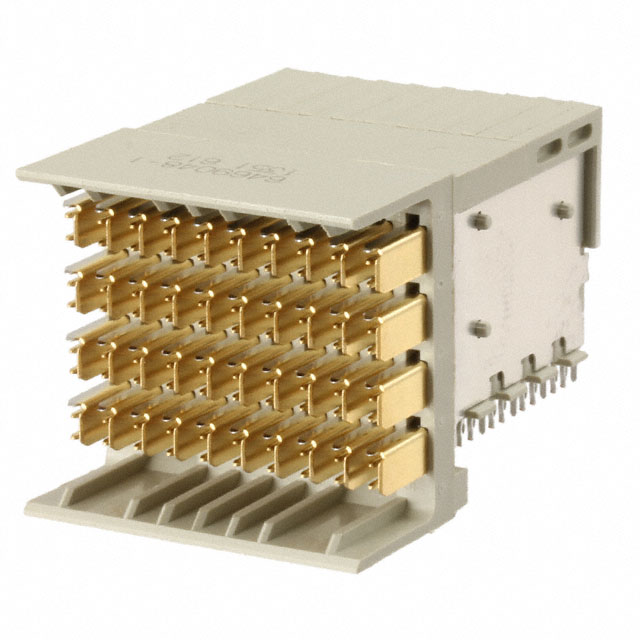

Z-PACK HM-Zd Series Header, Male Pins and Blades Press-Fit Gold 30.0μin 0.76μm 120 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle
6469048-1 Overview
It comes in Header, Male Pins and Blades packaging.The device's mounting type is Board Edge, Through Hole, Right Angle.In order to package the product, a Tube case is used.It belongs to the Z-PACK HM-Zd Series of products.The device is equipped with 80 pins.The part is mounted by Edge, Press Fit, Through Hole.The device runs in -65°C~105°C Operating Temperature.With a supply voltage of 250V, this Backplane Connector works.
