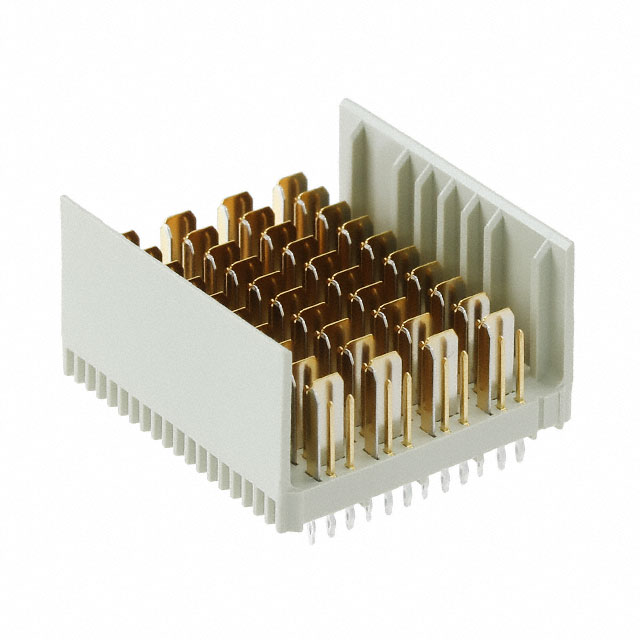

6469074-1
Or copy the link below:
- Mfr.Part #
- 6469074-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR HIGH SPEED 120POS PCB
- Stock
- 295
- In Stock ：
- 295
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Usage :
- Backplane
- Number of Columns :
- 10
- Number of Pairs :
- 40
- Housing Color :
- Grey
- Length :
- 24.95mm
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 700mA
- Contact Finish :
- Gold
- Operating Supply Voltage :
- 250V
- Packaging :
- Tube
- Published :
- 2005
- UL Flammability Code :
- 94V-0
- Contact Material :
- Bronze
- MIL Conformance :
- No
- PCB Mounting Orientation :
- Vertical
- Mount :
- Through Hole
- Make First / Break Last :
- No
- Depth :
- 23.43mm
- ECCN Code :
- EAR99
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Series :
- Z-Pack HM-ZD
- Connector Type :
- Header, Male Pins and Blades
- Mixed Contacts :
- No
- Plating Thickness :
- 760 nm
- Factory Lead Time :
- 8 Weeks
- Shielding :
- Shielded
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Connector Style :
- High Speed
- Number of Rows :
- 8
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 0.700A
- Number of Positions :
- 120
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 700mA
- Number of Contacts :
- 80
- Circuit Application :
- Signal
- Operating Temperature :
- -65°C~105°C
- Filter Feature :
- No
- IEC Conformance :
- No
- Termination :
- Press-Fit
- Pitch :
- 0.098 2.50mm
- Contact Layout, Typical :
- 80 Single Signal, 40 Ground
- Option :
- GENERAL PURPOSE
- Datasheets
- 6469074-1
Z-PACK HM-Zd Series Header, Male Pins and Blades Press-Fit Gold 30.0μin 0.76μm 120 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Through Hole
6469074-1 Overview
Packaging is Header, Male Pins and Blades.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Z-PACK HM-Zd Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -65°C~105°C Operating Temperature.The Backplane Connector is functional when supplied with voltage 250V.
6469074-1 Features
Z-PACK HM-Zd series
6469074-1 Applications
There are a lot of TE Connectivity AMP Connectors
6469074-1 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
