6469002-1
Or copy the link below:
- Mfr.Part #
- 6469002-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR HIGH SPEED 120POS PCB
- Stock
- 739
- In Stock ：
- 739
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Make First / Break Last :
- No
- Reference Standard :
- UL
- Number of Positions Loaded :
- All
- Number of Pins :
- 80
- Number Of PCB Rows :
- 12
- Operating Supply Voltage :
- 250V
- Circuit Application :
- Signal
- Connector Style :
- High Speed
- Lead Pitch :
- 2.5mm
- Length :
- 24.95mm
- Orientation :
- Vertical
- Number of Pairs :
- 40
- Contact Layout, Typical :
- 80 Single Signal, 40 Ground
- ECCN Code :
- EAR99
- Row Spacing :
- 1.5 mm
- Filter Feature :
- No
- Max Current Rating :
- 700mA
- Durability :
- 250 Cycles
- Max Voltage Rating (AC) :
- 250V
- Packaging :
- Tube
- Contact Pattern :
- RECTANGULAR
- Series :
- Z-Pack HM-ZD
- Polarization Key :
- POLARIZED HOUSING
- Pitch :
- 0.098 2.50mm
- Contact Style :
- SQ PIN-SKT
- Number of Conductors :
- ONE
- Factory Lead Time :
- 5 Weeks
- Number of Columns :
- 10
- Connector Usage :
- Backplane
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Flammability Rating :
- UL94 V-0
- REACH SVHC :
- No SVHC
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Number of Rows :
- 8
- Pbfree Code :
- yes
- Shielding :
- Shielded
- Mount :
- Through Hole
- Operating Temperature :
- -65°C~105°C
- Current Rating (Amps) :
- 0.700A
- Body/Shell Style :
- Receptacle
- MIL Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Current Rating :
- 700mA
- Plating Thickness :
- 760 nm
- Housing Material :
- Polyester
- Voltage - Rated DC :
- 250V
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Number of Positions :
- 120
- Dielectric Withstanding Voltage :
- 650VAC V
- Mounting Type :
- Through Hole
- Depth :
- 23.43mm
- Contact Resistance :
- 50mOhm
- Connector Type :
- Header, Male Pins and Blades
- Termination :
- Press-Fit
- Housing Color :
- Grey
- Contact Material :
- Bronze
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 80
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Contact Finish :
- Gold
- Published :
- 2004
- Datasheets
- 6469002-1

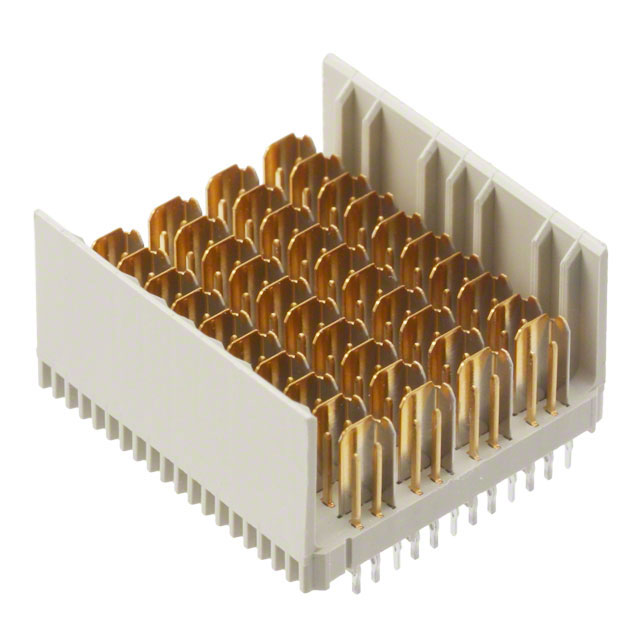

Z-PACK HM-Zd Series Header, Male Pins and Blades Press-Fit Gold 30.0μin 0.76μm 120 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Through Hole
6469002-1 Overview
Packaging is in the form of Header, Male Pins and Blades.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Z-PACK HM-Zd Series.There are 80 pins on the device.There is a mounting hole at Through Hole.Devices operate at -65°C~105°C operating temperatures.A supply voltage of 250V is necessary for this Backplane Connector to work.
6469002-1 Features
Z-PACK HM-Zd series
6469002-1 Applications
There are a lot of TE Connectivity AMP Connectors
6469002-1 Backplane Connectors applications.
