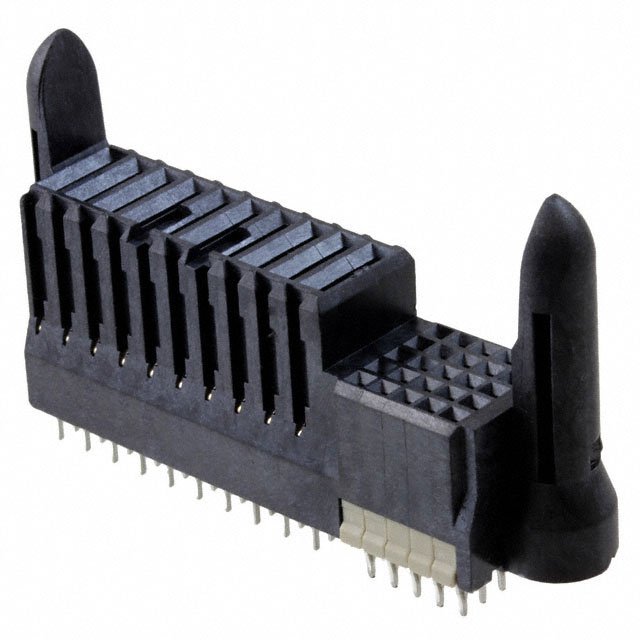

1892787-6
Or copy the link below:
- Mfr.Part #
- 1892787-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 35POS PCB
- Stock
- 1,134
- In Stock ：
- 1,134
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 16A
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Termination :
- Press-Fit, Solder
- Lead Free :
- Lead Free
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- PCB Mounting Orientation :
- Vertical
- Series :
- MINIPAK HDL
- Housing Material :
- Thermoplastic
- Feature :
- Guide Pin
- Contact Plating :
- Tin, Gold
- Housing Color :
- Black
- Factory Lead Time :
- 25 Weeks
- Height :
- 26.3398mm
- Contact Layout, Typical :
- 25 Signal, 10 Power
- Approval Agency :
- CSA
- Mount :
- Socket
- Plating :
- Gold
- Color :
- Black
- Number of Rows :
- 5
- Number of Power Positions :
- 10
- Number of Signal Positions :
- 25
- Number of Contacts :
- 85
- Packaging :
- Bulk
- Orientation :
- Vertical
- PCB Thickness :
- 55μm
- Material Flammability Rating :
- UL94 V-0
- Contact Retention :
- With
- Circuit Application :
- Power
- Contact Current Rating :
- 17A
- Underplate Material :
- Nickel
- Row Spacing :
- 50.8 mm
- Length :
- 51.74mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 11.35mm
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 250V
- Mounting Type :
- Through Hole
- Contact Material :
- Copper
- Max Operating Temperature :
- 125°C
- Sealable :
- No
- Min Operating Temperature :
- -40°C
- Contact Finish :
- Gold or Gold-Palladium
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Plating Thickness :
- 500 nm
- Pitch :
- 2.5mm
- Number of Positions :
- 35
- Published :
- 2012
- Datasheets
- 1892787-6
MINIPAK HDL Series Receptacle, Female Sockets and Blade Sockets Press-Fit, Solder Gold or Gold-Palladium Black 30.0μin 0.76μm 35 Positions Pitch: 2.5mm Bulk Through Hole
1892787-6 Overview
Packaging for this item is Receptacle, Female Sockets and Blade Sockets.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the MINIPAK HDL Series.You should use it when it's below 125°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Guide Pin feature makes it more powerful.Socket is used to mount the part.This Backplane Connector can be used with a supply voltage of 250V.
1892787-6 Features
MINIPAK HDL series
1892787-6 Applications
There are a lot of TE Connectivity AMP Connectors
1892787-6 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
