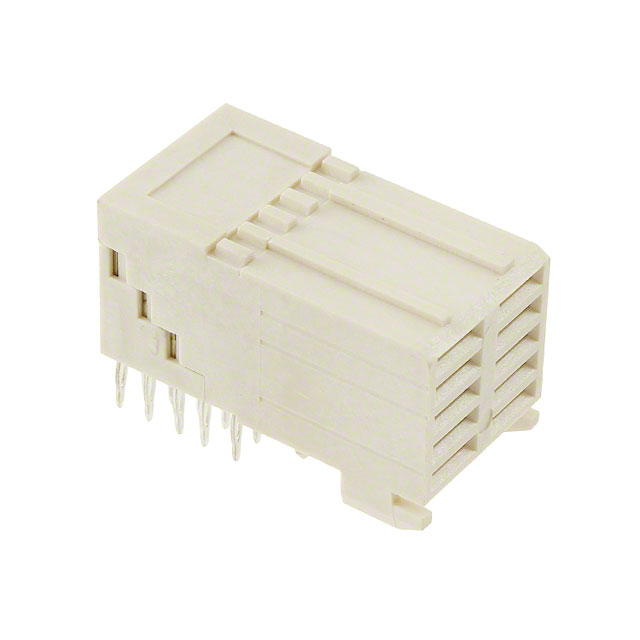

536676-1
Or copy the link below:
- Mfr.Part #
- 536676-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FUTUREBUS 10P EDGE MNT
- Stock
- 31,438
- In Stock ：
- 31,438
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Plating :
- Gold
- Total Number of Contacts :
- 10
- Contact Style :
- BLADE PIN-SKT
- Orientation :
- RIGHT ANGLE
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- yes
- RoHS Status :
- RoHS Compliant
- Body Depth :
- 0.883 inch
- MIL Conformance :
- No
- Body Length or Diameter :
- 0.467 inch
- Lead Free :
- Not Applicable
- Number of Power Positions :
- 10
- Pitch :
- 5.9944mm
- DIN Conformance :
- No
- Length - Termination :
- 0.14 inch
- Flammability Rating :
- UL94 V-0
- Make First / Break Last :
- No
- IEC Conformance :
- No
- ELV :
- Non-Compliant
- Number of Rows :
- 5
- PCB Mounting Orientation :
- RIGHT ANGLE
- Voltage - Rated DC :
- 300V
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Number of Conductors :
- ONE
- Contact Gender :
- Male
- Housing Material :
- Polymer
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 30V
- Plating Thickness :
- FLASH inch
- Mount :
- Edge, Through Hole
- Lead Length :
- 3.56mm
- Min Operating Temperature :
- -55°C
- Max Operating Temperature :
- 105°C
- Termination :
- Press-Fit
- Connector Type :
- Connector, Receptacle, Socket
- Datasheets
- 536676-1
536676-1 Documents
Connector, Receptacle, Socket Press-Fit Pitch: 5.9944mm
536676-1 Overview
The product is packaged in Connector, Receptacle, Socket.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.Part Edge, Through Hole is mounted to the part.
536676-1 Features
536676-1 Applications
There are a lot of TE Connectivity / AMP
536676-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
