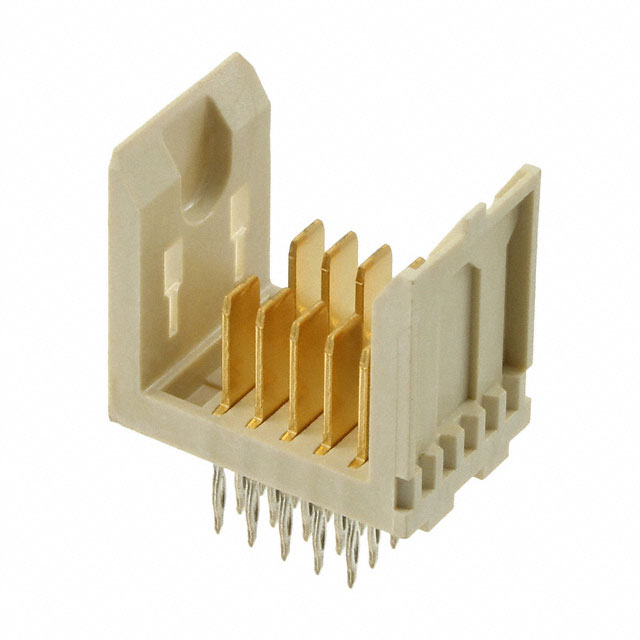

536642-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Specialized

Option :

GENERAL PURPOSE

Connector Style :

Futurebus

Body Depth :

0.669 inch

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

No

Length - Termination :

0.187 inch

Housing Material :

Polymer

Mounting Type :

Through Hole

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Termination :

Press-Fit

Contact Finish :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Z-PACK

Number of Power Positions :

10

Reference Standard :

UL, CSA

Contact Layout, Typical :

10 Power

Published :

2005

Material Flammability Rating :

UL94 V-0

Voltage - Rated AC :

30V

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Lead Free :

Not Applicable

Packaging :

Tube

PCB Mounting Orientation :

Vertical

IEC Conformance :

No

Body Length or Diameter :

0.468 inch

Number Of PCB Rows :

5

Voltage - Rated DC :

300V

Gender :

Male

Max Voltage Rating (AC) :

30V

Filter Feature :

No

Rated Current (Signal) :

3A

Withdrawl Force-Min :

.278 N

Number of Rows :

5

Make First / Break Last :

No

Mixed Contacts :

No

PCB Contact Row Spacing :

2.0066 mm

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Mount :

Through Hole

ELV :

Non-Compliant

Total Number of Contacts :

10

Color :

Natural

Number of Conductors :

ONE

UL Flammability Code :

94V-0

Contact Finish Thickness :

Flash

Contact Style :

BLADE PIN-SKT

Contact Pattern :

RECTANGULAR

Pitch :

0.236 6.00mm

MIL Conformance :

No

Mating Contact Row Spacing :

0.079 inch

RoHS Status :

Non-RoHS Compliant

Connector Type :

Header, Male Blades

Body/Shell Style :

Receptacle

Body Breadth :

0.701 inch
