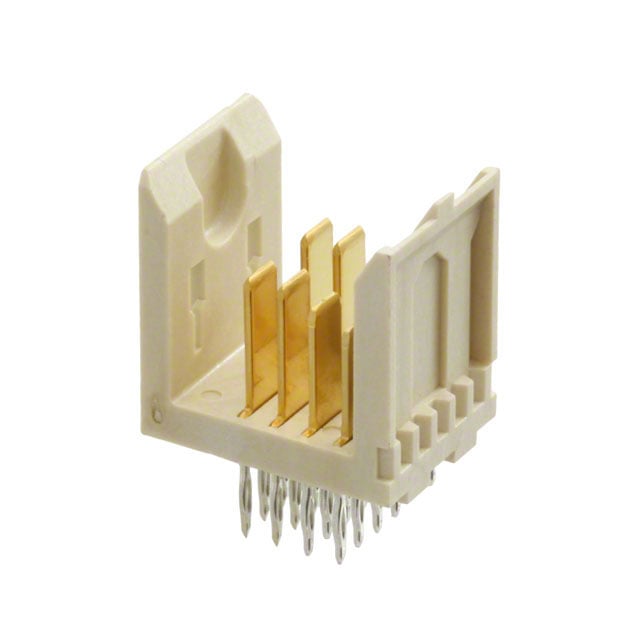

536622-1
Or copy the link below:
- Mfr.Part #
- 536622-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- VQFN
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 8POS PCB
- Stock
- 32,974
- In Stock ：
- 32,974
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Type :
- Header, Pin, Plug
- Material Flammability Rating :
- --
- ELV :
- Non-Compliant
- Data Rate :
- 5 Gbps
- Color :
- --
- Lead Free :
- Not Applicable
- ECCN Code :
- EAR99
- Contact Plating :
- Gold, Nickel
- Pitch :
- 2mm
- Number of Rows :
- 4
- Dielectric Withstanding Voltage :
- 1000VAC V
- Insulator Color :
- Natural
- Number of Columns :
- --
- Option :
- GENERAL PURPOSE
- Input :
- CML
- PCB Mounting Orientation :
- Vertical
- Max Voltage Rating (AC) :
- 30V
- Housing Material :
- Polymer
- Packaging :
- Tape and Reel (TR)
- Contact Gender :
- Male
- Insulation Resistance :
- 100000000Ohm
- Make First / Break Last :
- No
- Contact Style :
- BLADE PIN-SKT
- Number of Positions :
- 8
- Number of Positions Loaded :
- All
- Series :
- Z-PACK
- Current Rating :
- --
- Additional Feature :
- Z-PACK
- Connector Usage :
- --
- Body Depth :
- 0.669 inch
- Termination :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- --
- Connector Style :
- Futurebus
- Operating Temperature :
- --
- Orientation :
- Straight
- Max Operating Temperature :
- 85°C
- Contact Material :
- Bronze
- IEC Conformance :
- No
- Features :
- --
- Voltage Rating :
- 30V
- Contact Finish :
- Gold
- Contact Layout, Typical :
- 8 Power
- Pbfree Code :
- No
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Min Operating Temperature :
- 0°C
- Mount :
- Through Hole
- Filter Feature :
- No
- Voltage - Rated AC :
- 30V
- Operating Supply Current :
- 100mA
- Reliability :
- COMMERCIAL
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- DIN Conformance :
- No
- Number of Power Positions :
- 8
- Total Number of Contacts :
- 8
- Body/Shell Style :
- Receptacle
- Length - Termination :
- 0.167 inch
- Number of Conductors :
- ONE
- Package / Case :
- VQFN
- RoHS Status :
- RoHS Compliant
- Number of Channels :
- 2
- Datasheets
- 536622-1
